Material: | 304 Stainless Steel | Machine Model: | PW-300E |
---|---|---|---|
Delivery: | Twenty Days | Encasement: | Wooden Case |
Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
High Light: | capsule blister packaging machine,tablet blister packaging machine |

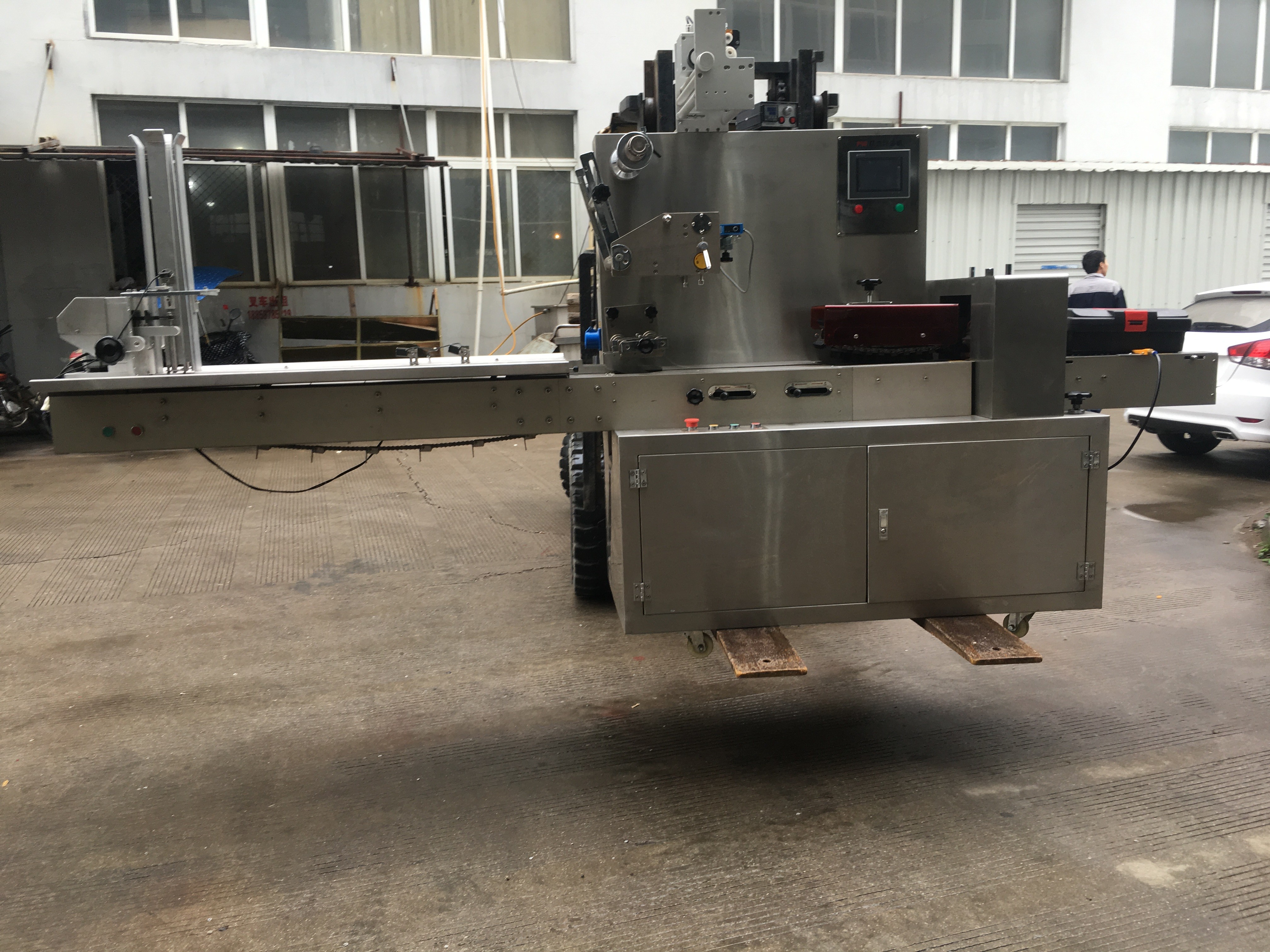

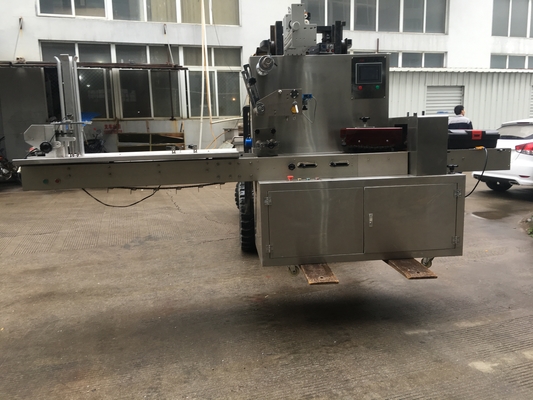

Patent certification of new technology pillow type Blister Packing Machine has the easy maintenance
Automatic packaging machine with automatic measurement, filling, bagging, sealing, cutting off, conveying, printing production batch number, increase the easy incision, no material warning, mixing and other functions.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
Equipment capability:
1. mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
2. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.setting and control of sealing and cutting temperature.can realize color mark tracking trademark to its function.the whole operation is stable and reliable, and can adapt to various specifications of the adjustment.
3. Can be set to store ten sets of recipe, parameter setting convenient.
