Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
High Light: | pastry packaging machine,flow wrap packaging machine |

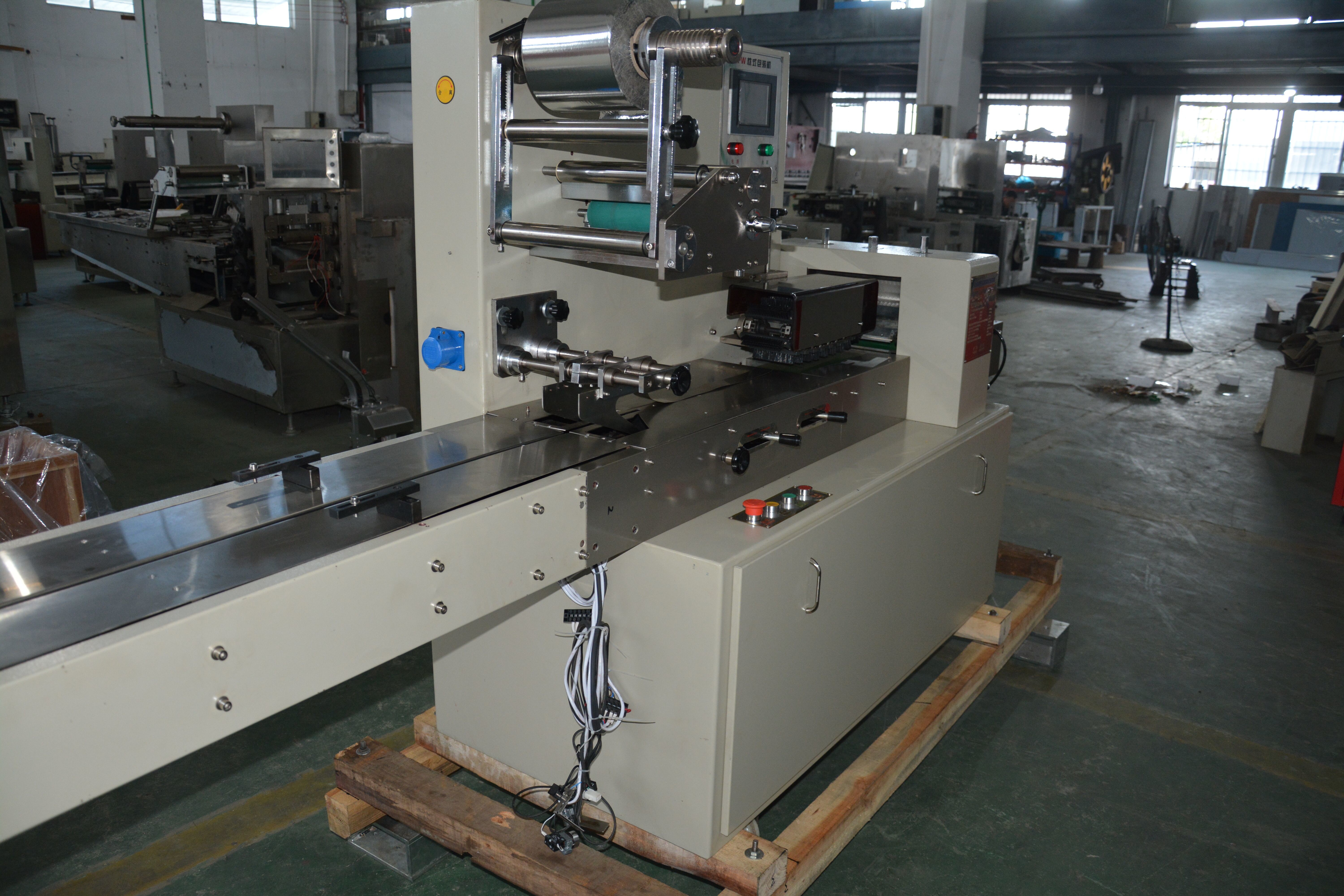

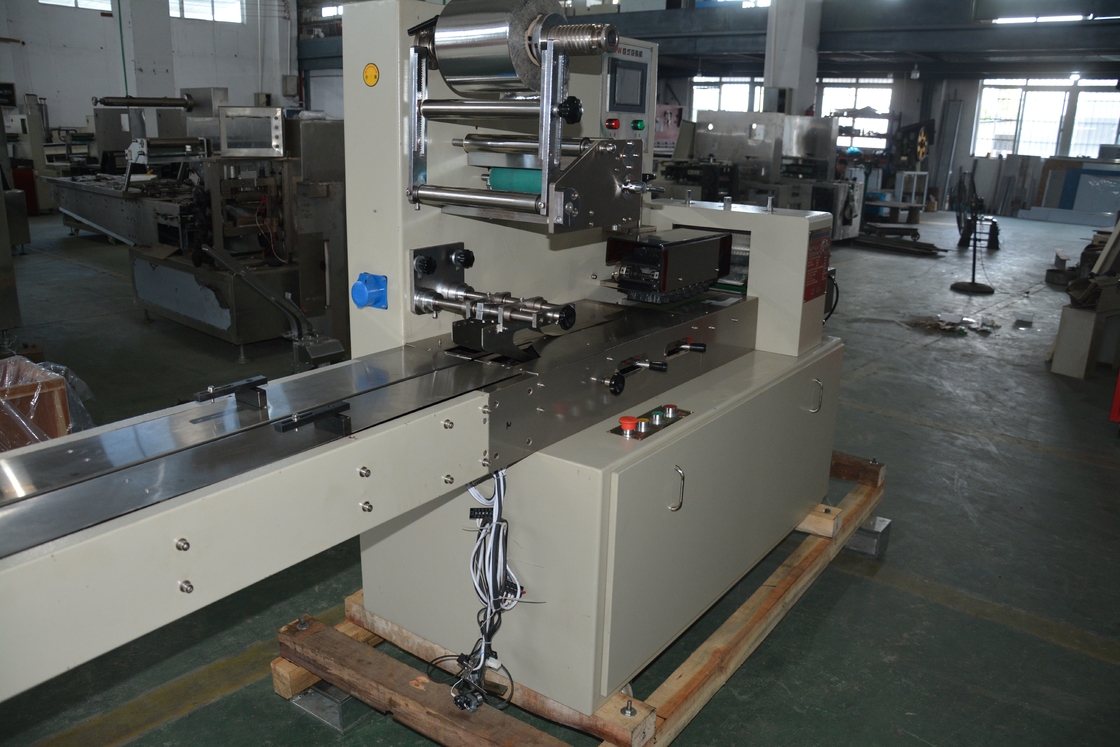

reliable work Reciprocating pillow type Multi Function Packing Machine with Stainless steel fuselage
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise;
2. photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film;
3. modulation bag machine, compact structure, convenient replacement of varieties; low noise.
4. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
5. less fault, easy maintenance, easy to change parts and circuit board easy to replace. All control loops, sensors, lubrication points and vulnerable parts should have enough space for service and maintenance.
6. equipment is safe and durable, parameter setting, operation process is convenient, simple, simple, flexible and accurate, electricity saving, and few operators need.
7. equipment have reliable grounding device and obvious safety signs, warning signs, nameplate installation, function identification mark and the ground should be complete and effective, clear and easy to remember.
correlating parameter
The machine type
|
GPW-350 |
Film Width
|
Max.350mm |
Bag length
|
100~200mm |
Product Height
|
10~50mm |
film diameter
|
Max.400mm |
Packing speed
|
5~150package/minute
|
power
|
220V50/60Hz3.2Kw |
Machine size
|
(L)4200×(W)960×(H)1520mm |
machine weight
|
About 1160Kg |
Air Pressure
|
≥0.2 MPa |
