| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Film Widh: | 5-230Bags/min |
|---|---|---|---|
| Overall Size: | 3780×640×1550mm | Material: | Stainless Steel |
| Sealing Strength: | ＞15 N/mm² | Machine Model: | PW-300A |
| High Light: | horizontal wrapping machine,horizontal pillow packing machine |
||
Horizontal spraying plastics automatic flour packing machine for small food like French fries
Pricial capability and structural features:
1. Steady running speed of 80-100 packs / minutes.
2. Yield: no less than 99.5%, based on the continuous production and packaging of the pillow type packing machine.
3. The width of the composite membrane: within 85~300mm,
Thickness: 0.45~0.7mm.
4. The cutting and back sealing of the cutter seat: the seal is smooth and the indentation of the knife seat is clear.
5. Waste device: the material can be detected in the production, and the waste can be removed.
6. Provide equipment requirements for power system and plant facilities in detail, and assist users to complete the design of installation drawings.
7. Packing speed 40~100 bag / min adjustable, adjustable length 65~190mm, the maximum height of less than 45mm.
8. The temperature can be controlled by the temperature module and the temperature fluctuation is within + 3 C.
9. The printer uses the ink wheel to code the code with three typesetting particles (including the production date, the validity period and the production batch number).
10. The equipment is controlled by a separate deceleration motor and connected to the frequency converter to separate the feed from the seal, and can be debugged and operated by itself.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |

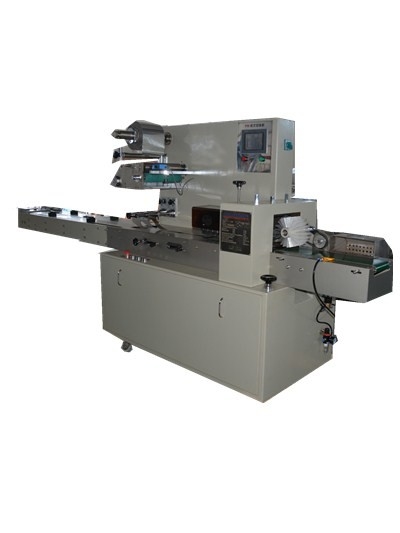

the picture of packing:
