| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Packging Film Widh: | 5-230Bags/min | Overall Size: | 3780×640×1550mm |
|---|---|---|---|
| Material: | 304 Stainless Steel | Machine Model: | PW-300A |
| Delivery: | Twenty Days | Weight: | 450kg |
| High Light: | horizontal wrapping machine,horizontal pillow packing machine |
||
Horizontal 304 Stainless steel stable function PW - 300A packing machine for biscuits sandwiching
Pricial capability and structural features:
1. Compact strure, stable function and simple operation,All the controlling operates by the software, convenience for function adjustment and technical up grading.
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film；It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
3. Self-checking function, troubles can be read easily. Clean rotation system, more reliable operation and more convenient maintenance.
4. Dependant temperature PID controlling suitable for various materials of packaging membrane.High sensor photoelectric color charttracking, make the cutting position more correctly.
5. Position stop function, noadhesive and no waste of membrane.
6. The printer uses the ink wheel to code the code with three typesetting particles (including the production date, the validity period and the production batch number).
7. The equipment is controlled by a separate deceleration motor and connected to the frequency converter to separate the feed from the seal, and can be debugged and operated by itself.
8. The design of the connection structure between the equipment and the ground of the related plant should ensure that the facilities are not destroyed, the dead angle is easy to be cleaned and the maintenance is easy.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |

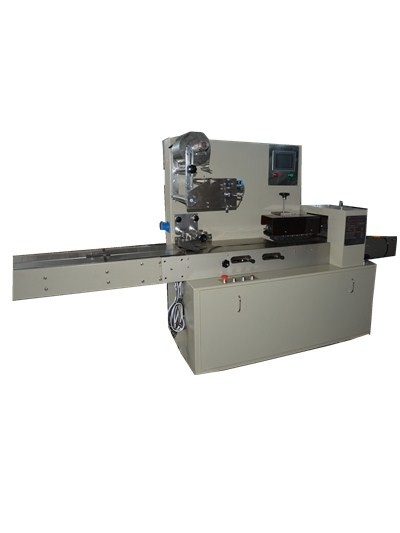

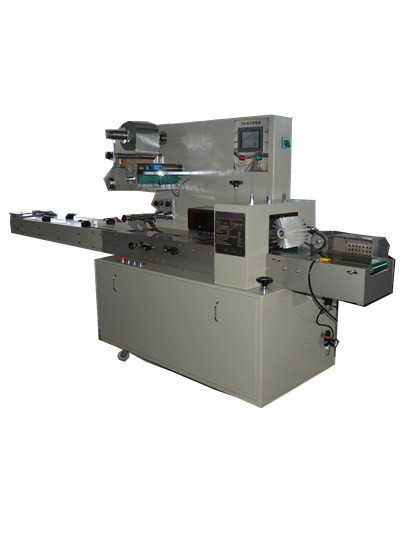

the picture of packing:
