| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Weight: | 450kg |
| Encasement: | Wooden Case | Overall Size: | 3780X830X1560mm |
| High Light: | horizontal pillow packing machine,pillow type packing machine |
||

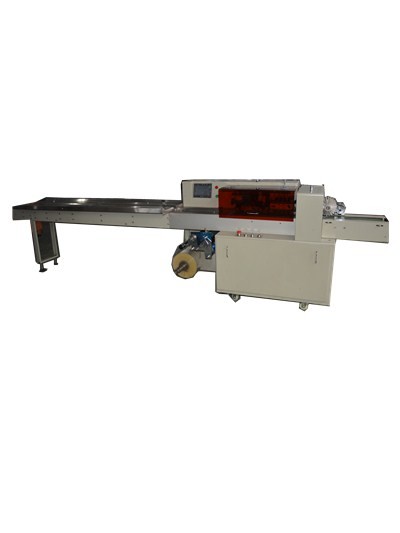

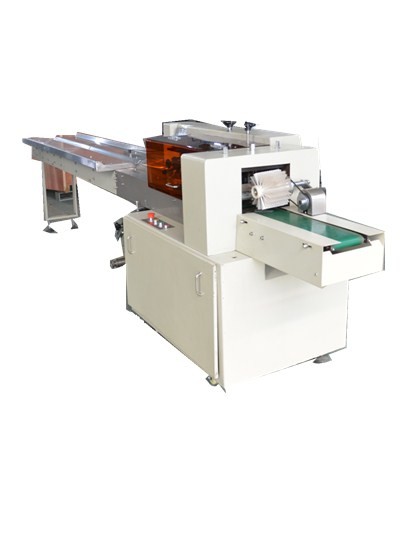

Horizontal 304 Stainless steel compact structure PW - 300 E packing machine for hardware parts
Pricial capability and structural features:
1. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
2. Compact strure, stable function and simple operation,All the controlling operates by the software, convenience for function adjustment and technical up grading.
3. The key components such as PLC and touch screen are well-known international brands, and the main motor and feeding motor are famous brands in China.
4. Dependant temperature PID controlling suitable for various materials of packaging membrane.
5. The control system is man-machine interface with manual and automatic operation mode, and it has the program of temperature, running time, number of edition and production quantity. It also configures detection, quantity setting function and independent switch function of upper and lower knife temperature and medium seal temperature. Configuring devices with storage and printing functions.
6. Position stop function, noadhesive and no waste of membrane.High sensor photoelectric color charttracking, make the cutting position more correctly.
7. Clean rotation system, more reliable operation and more convenient maintenance.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
the picture of packing:
