| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | hardware counting packing machine,automatic screw packing machine |
||

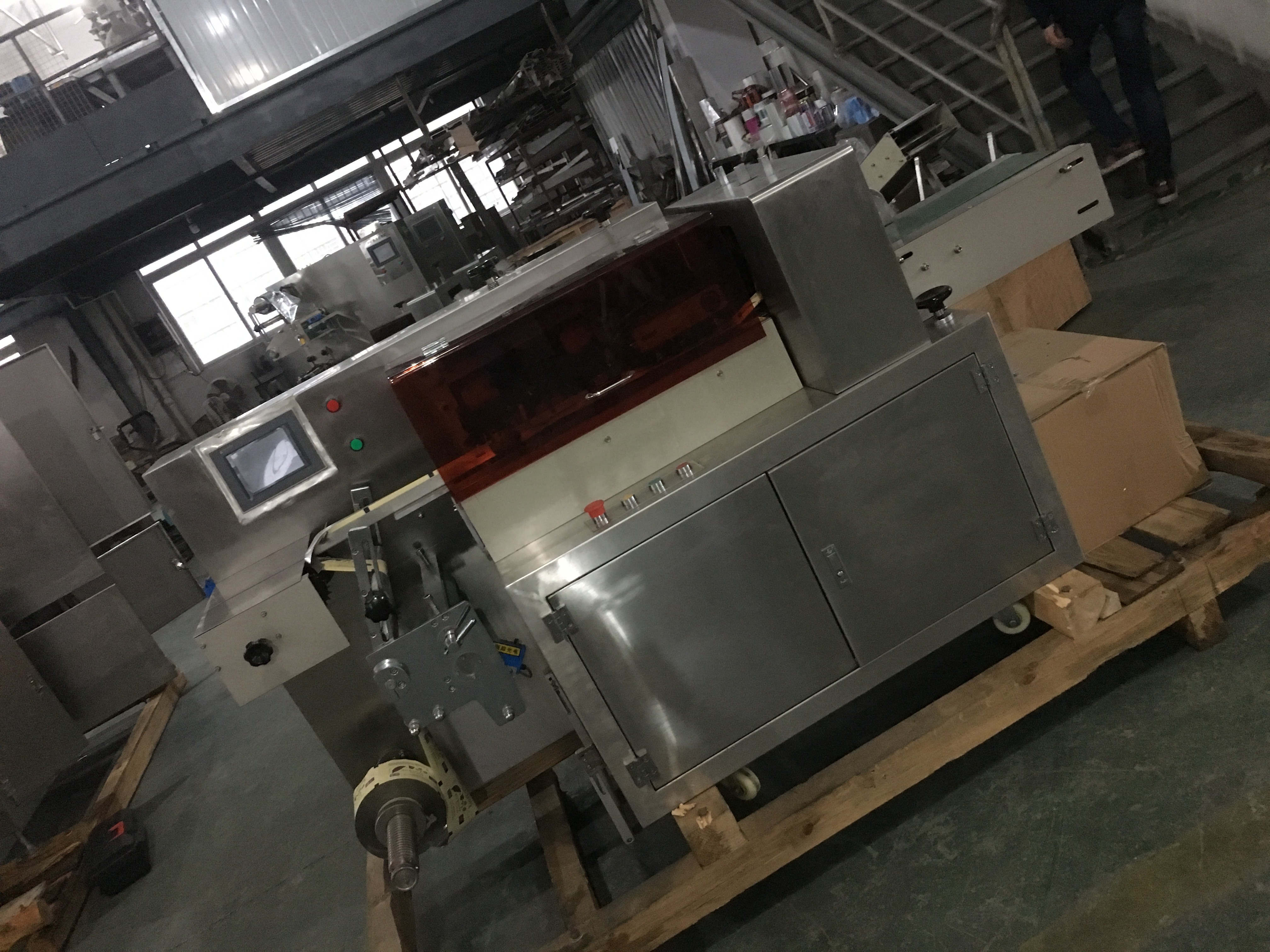

Automatic Stainless steel pillow type packing machine for hardware like Auto parts
Equipment capability:
1. using photoelectric tracking technology, the sealing and cutting position is accurate, and the cutting point tracking progress can be up to 2mm.
2. digital input, computer program to automatically adjust to the set length, without manual, the length of the bag is reliable and stable.
3. when changing the length of the bag, the other parts of the equipment need only a little adjustment or no adjustment, and the adjustment part has the scale to help the accurate positioning.
4. film roll replacement is convenient and labor-saving, and the film roller can be made according to the width of the film roll.
5. there are photoelectric switches and electromagnetic proximity sensors to achieve the multi point stability tracking and detection of welding temperature and bag positioning.
6. has the positioning stop function, no sticky knife, no waste film.
7., automatic detection system and screen display simple troubleshooting method, to achieve automatic diagnosis, fault display, automatic elimination, automatic alarm and automatic protection and other functions.
8. there are packing air pressure catching device or vacuum device to make the least residual air in the bag.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
After-sale service:
1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.
2. Test run of the machine & training:
We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .
We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication and each day 100usd living allowances.
3.Training of buyer in China:
We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer
4. We supply the consumable spare parts for free for one years use.
