| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | horizontal wrapping machine,horizontal pillow packing machine |
||

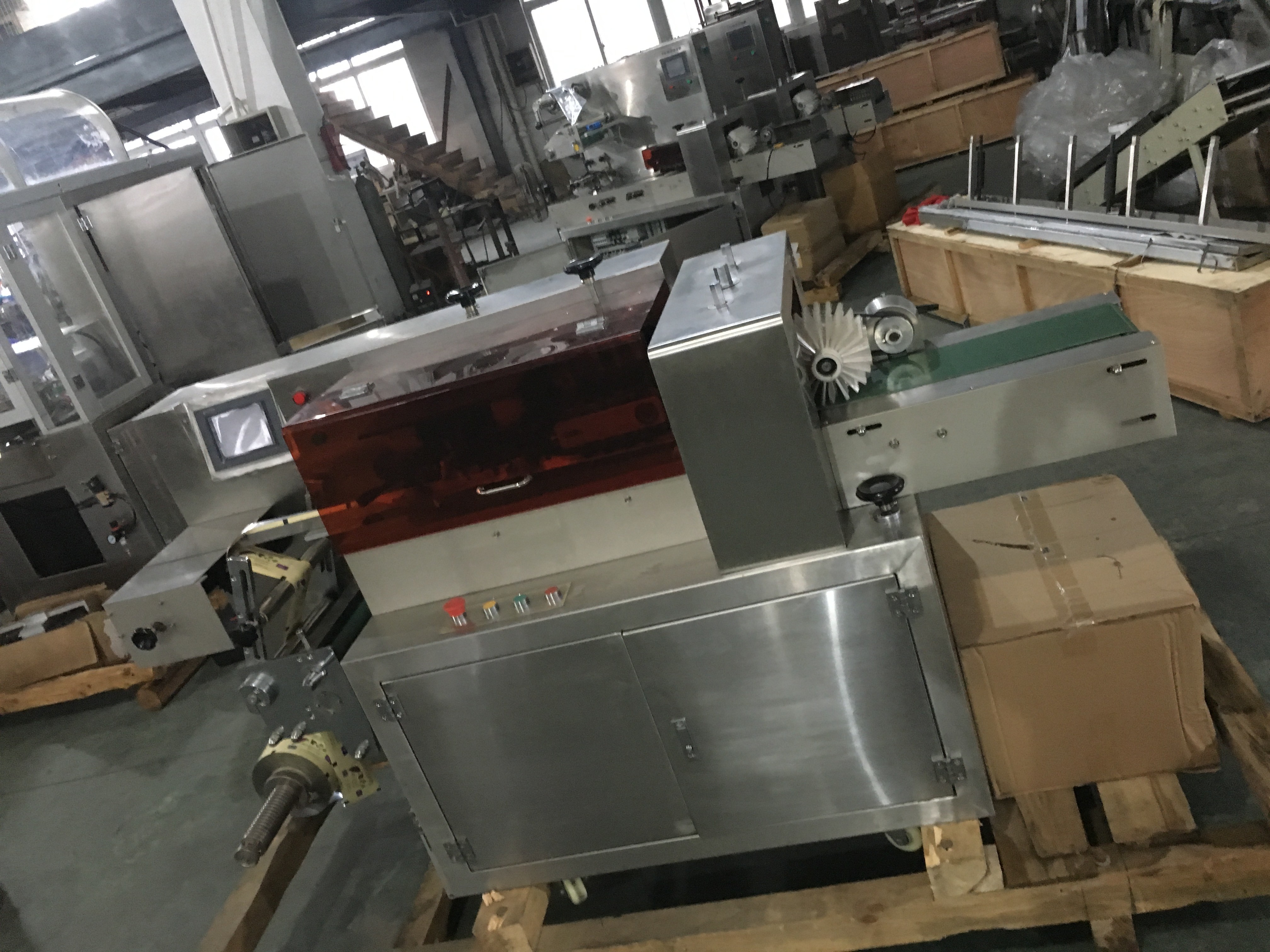

horizontal Stainless steel pillow type packing machine for Special heating bag
Equipment capability:
1. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging.
2. can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
3. according to the positioning mark of packing material, the continuous photoelectric automatic positioning system is designed to eliminate the error and achieve the correct sealing and cutting.
4.mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.
5. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.
6. The key components such as PLC and touch screen are well-known international brands, and the main motor and feeding motor are famous brands in China.
7. When the equipment is running, the noise is less than 80dB.
8. There are notable warning signs in danger prone areas, such as heating components, scalding warning, punching and shearing warning, heat sealing and anti extrusion warning, and emergency stop switches near the forming units. The transmission mechanism automatically stops when the safety cover is opened.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Warranty:
1. We warranty against any defects in design and workmanship for 1 year from the shipment date.
2. This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3. We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
