| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | cookie packaging machine,food product packaging machine |
||
Stainless steel fuselage Automatic Food Packing Machine has One year repair for free
and maintenance for lifetime
Pricial capability and structural features:
1.Compact strure, stable function and simple operation,Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
2.It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily. Self-checking function, troubles can be read easily.
3. Position stop function, noadhesive and no waste of membrane. Clean rotation system, more reliable operation and more convenient maintenance.All the controlling operates by the software, convenience for function adjustment and technical up grading.
4. High sensor photoelectric color charttracking, make the cutting position more correctly.Dependant temperature PID controlling suitable for various materials of packaging membrane.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |

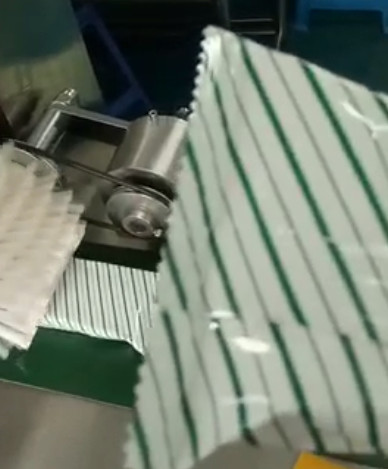

Sketch map of simple work:
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
