| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | G PW-350C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000/ set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
| Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
| High Light: | horizontal pillow packing machine,pillow type packing machine |
||

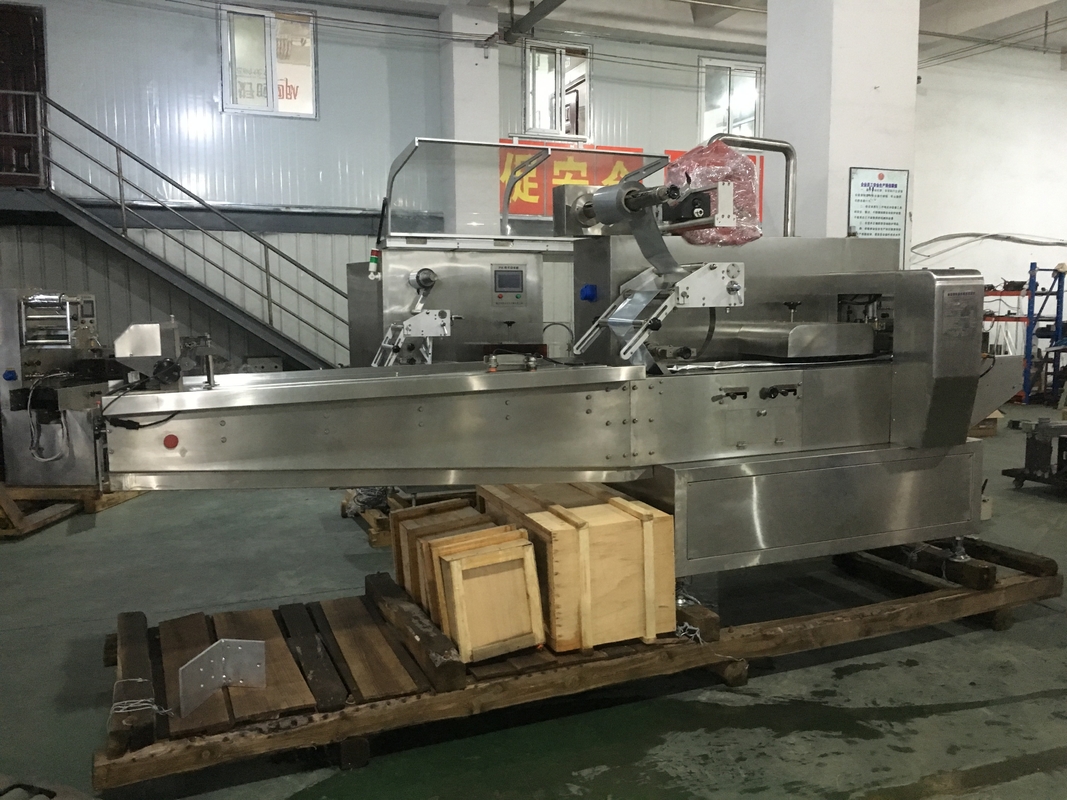

Stainless steel fuselage and has good sealing performance Horizontal Packing Machine
with low reject rate
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise;
2. photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film;
3. modulation bag machine, compact structure, convenient replacement of varieties; low noise.
4. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
5. in the packaging machine can meet the packaging requirements to ensure the packaging film has the advantages of convenient adjustment, simple structure, stable operation, reliable work, easy maintenance, high efficiency, low cost and convenient operation is based on the characteristics of the packaging machine, and reduces the labor intensity of workers, improve labor productivity; strong applicability. Have a good economy.
6. Waste device: the material can be detected in the production, and the waste can be removed.
7. Provide equipment requirements for power system and plant facilities in detail, and assist users to complete the design of installation drawings.
8. Packing speed 40~100 bag / min adjustable, adjustable length 65~190mm, the maximum height of less than 45mm.
9. The temperature can be controlled by the temperature module and the temperature fluctuation is within + 3 C.
|
The machine type
|
GPW-350 |
|
Film Width
|
Max.350mm |
|
Bag length
|
100~200mm |
|
Product Height
|
10~50mm |
|
film diameter
|
Max.400mm |
|
Packing speed
|
5~150package/minute
|
|
power
|
220V50/60Hz3.2Kw |
|
Machine size
|
(L)4200×(W)960×(H)1520mm |
|
machine weight
|
About 1160Kg |
|
Air Pressure
|
≥0.2 MPa |
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
