| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | GPW-350C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000/ set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
| Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
| High Light: | horizontal pillow packing machine,pillow type packing machine |
||

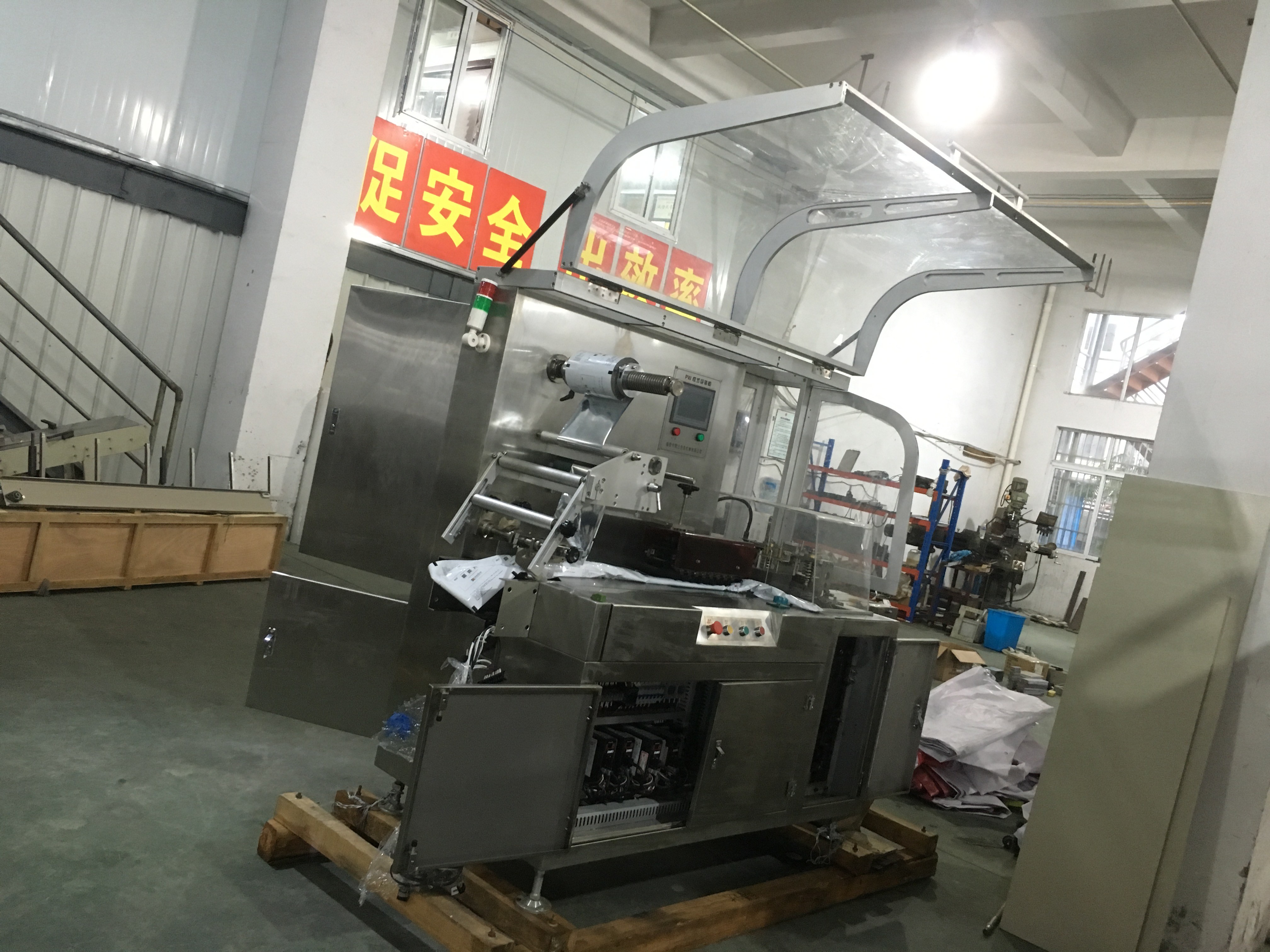

low reject rate and mature technology Horizontal Packing Machine with Stainless steel fuselage
The main performance and structure characteristics
1. Reciprocating knife frame structure, affected by the packaging material.
2. 4 servo control, the bag length is set or cut, no need to adjust the air, one step is in place, save time the film.
3. Adopt Taiwan and Japan imported electric appliances, touch machine interface, parameter setting is convenient and fast.
4. The fault self-diagnosis function, the fault display is clear.
5. High sensitivity photoelectric eye color tracking, making the sealing position more accurate.
6. Temperature independent PID control, better suitable for various materials coating.
7. Locate the stop function, not stick to the knife, no film.
8. The rotation system is simple, the work is more reliable, and the maintenance is more convenient.
9. All controls are implemented by software, convenient function adjustment and technology upgrade, never lag behind.
10. Using servo feeding, the operation is convenient and fast, only on the screen operation.
11. The hopper and the metal part of the feeder are made of 304 stainless steel. The non metal must meet the GMP requirements and provide an effective material specification. The material selected not to contact with the material must be ensured not to fall off, corrosion resistant, easy to clean, and no pollution to the environment.
After-sale service:
The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.Test run of the machine & training:We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging,communication and each day 100usd living allowances.Training of buyer in China:We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.We supply the consumable spare parts for free for one years use.
Scope of application:
It is specially designed for the packaging of the aluminum foam cover plate and other similar materials.
|
The machine type
|
GPW-350 |
|
Film Width
|
Max.350mm |
|
Bag length
|
100~200mm |
|
Product Height
|
10~50mm |
|
film diameter
|
Max.400mm |
|
Packing speed
|
5~150package/minute
|
|
power
|
220V50/60Hz3.2Kw |
|
Machine size
|
(L)4200×(W)960×(H)1520mm |
|
machine weight
|
About 1160Kg |
|
Air Pressure
|
≥0.2 MPa |
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,

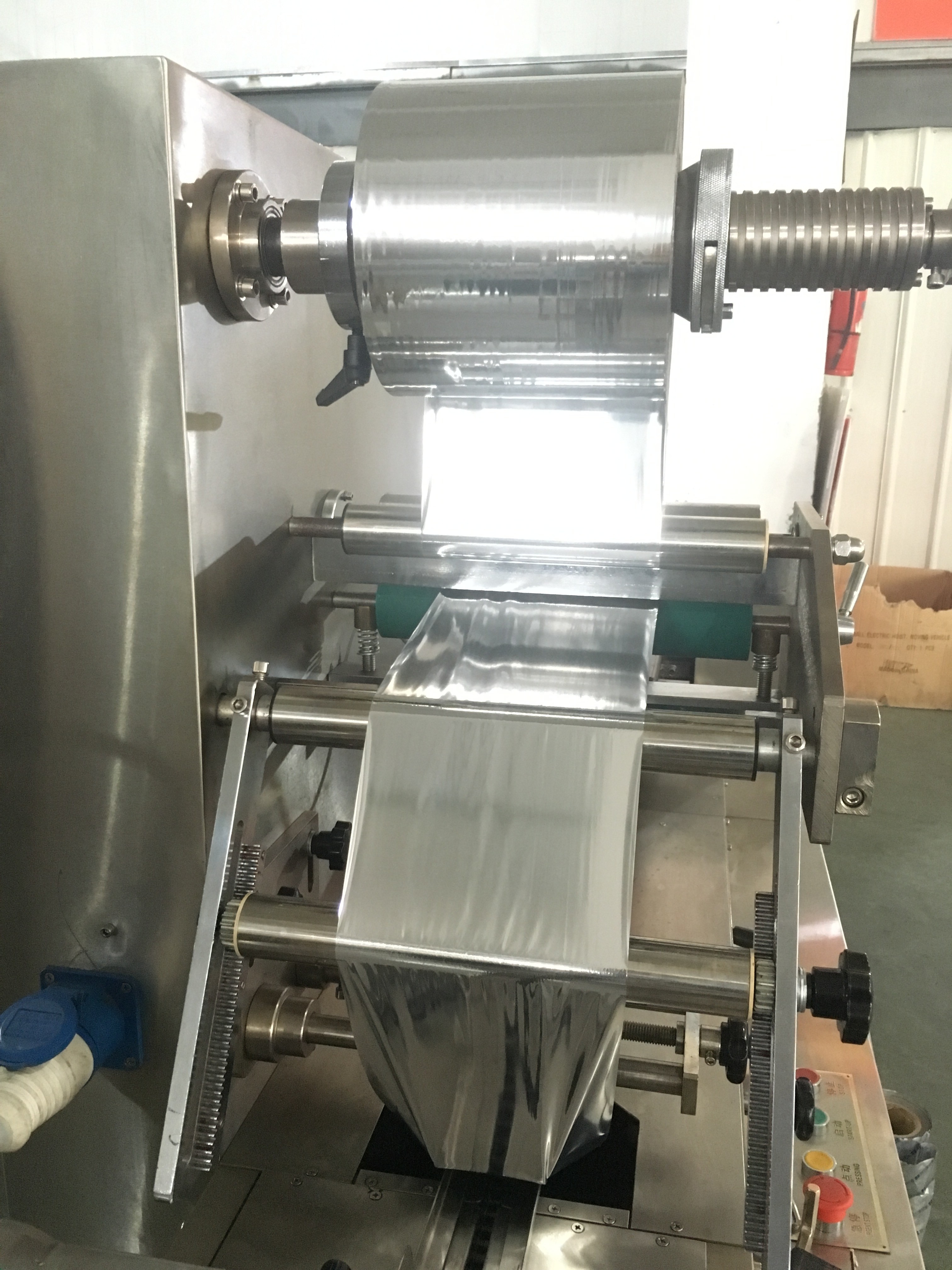

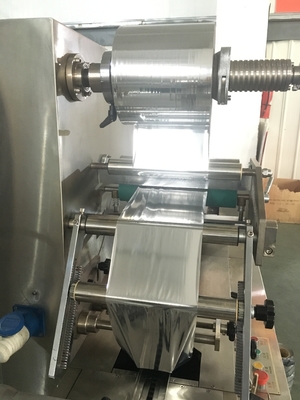

2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
