| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | GPW-350C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000/ set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
| Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
| High Light: | horizontal pillow packing machine,pillow type packing machine |
||

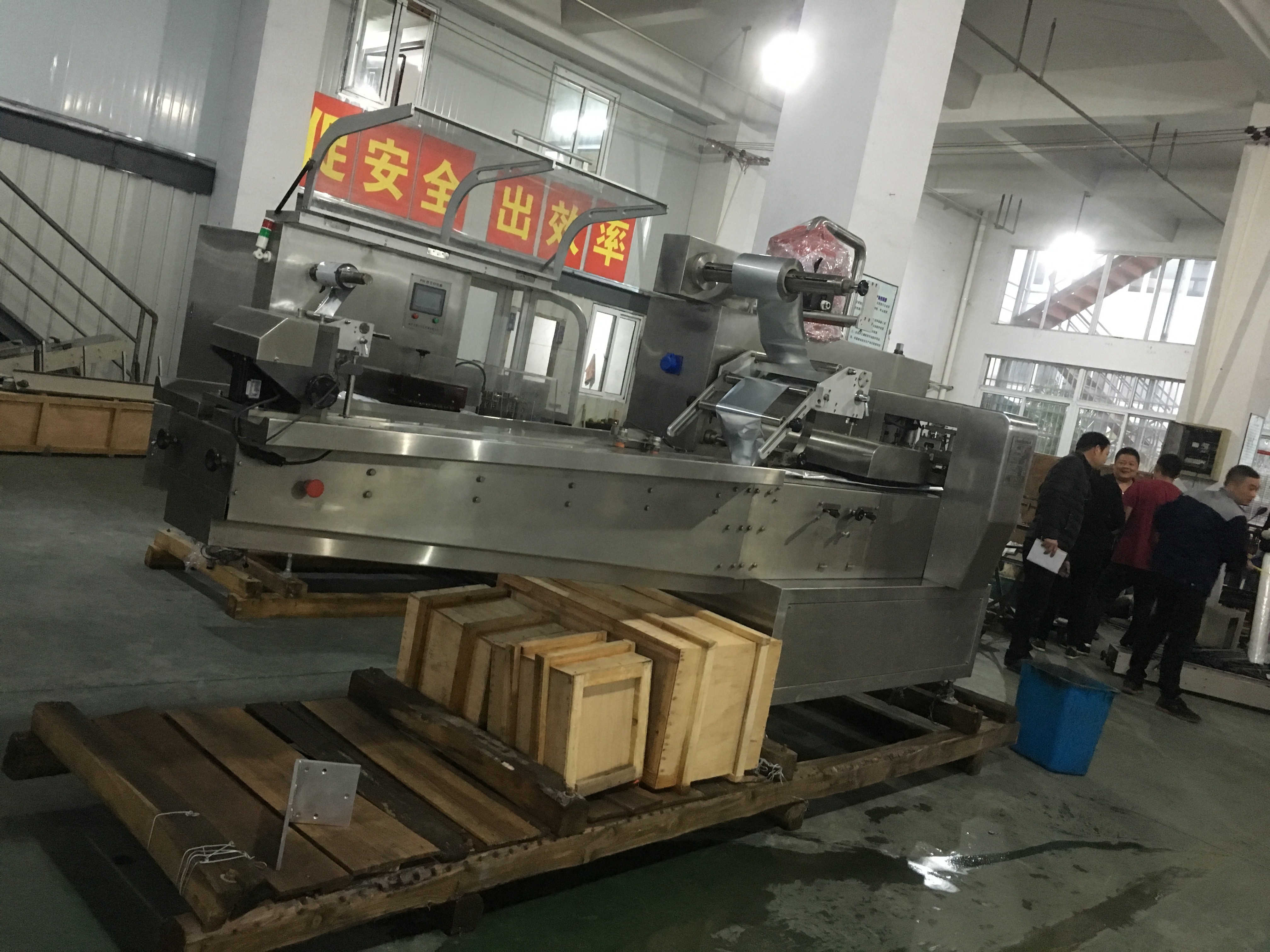

Safe and time-saving Horizontal Packing Machine with mature technology
and the fuselage is Stainless steel
The main performance and structure characteristics
1. Reciprocating knife frame structure, affected by the packaging material.
2. 4 servo control, the bag length is set or cut, no need to adjust the air, one step is in place, save time the film.
3. Adopt Taiwan and Japan imported electric appliances, touch machine interface, parameter setting is convenient and fast.
4. The fault self-diagnosis function, the fault display is clear.
5. High sensitivity photoelectric eye color tracking, making the sealing position more accurate.
6. Temperature independent PID control, better suitable for various materials coating.
7. Locate the stop function, not stick to the knife, no film.
8. The rotation system is simple, the work is more reliable, and the maintenance is more convenient.
9. All controls are implemented by software, convenient function adjustment and technology upgrade, never lag behind.
10. The design of the connection structure between the equipment and the ground of the related plant should ensure that the facilities are not destroyed, the dead angle is easy to be cleaned and the maintenance is easy.
11. Control cabinet, control box, control button has good seal, can effectively prevent dust into it.
12. The pneumatic original is a famous brand product. The main module of PLC is Japanese Panasonic and Schneider famous brand products.
Scope of application:
It is specially designed for the packaging of the aluminum foam cover plate and other similar materials.
|
The machine type
|
GPW-350 |
|
Film Width
|
Max.350mm |
|
Bag length
|
100~200mm |
|
Product Height
|
10~50mm |
|
film diameter
|
Max.400mm |
|
Packing speed
|
5~150package/minute
|
|
power
|
220V50/60Hz3.2Kw |
|
Machine size
|
(L)4200×(W)960×(H)1520mm |
|
machine weight
|
About 1160Kg |
|
Air Pressure
|
≥0.2 MPa |
After-sale service:
The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.Test run of the machine & training:We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging,communication and each day 100usd living allowances.Training of buyer in China:We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.We supply the consumable spare parts for free for one years use.
