| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | horizontal wrapping machine,pillow type packing machine |
||

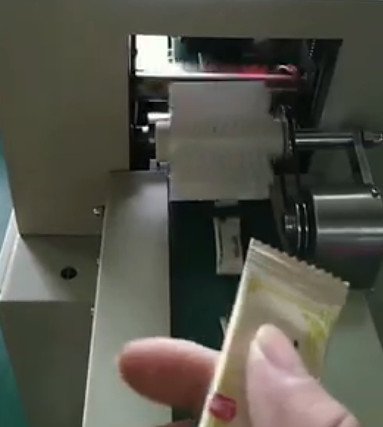

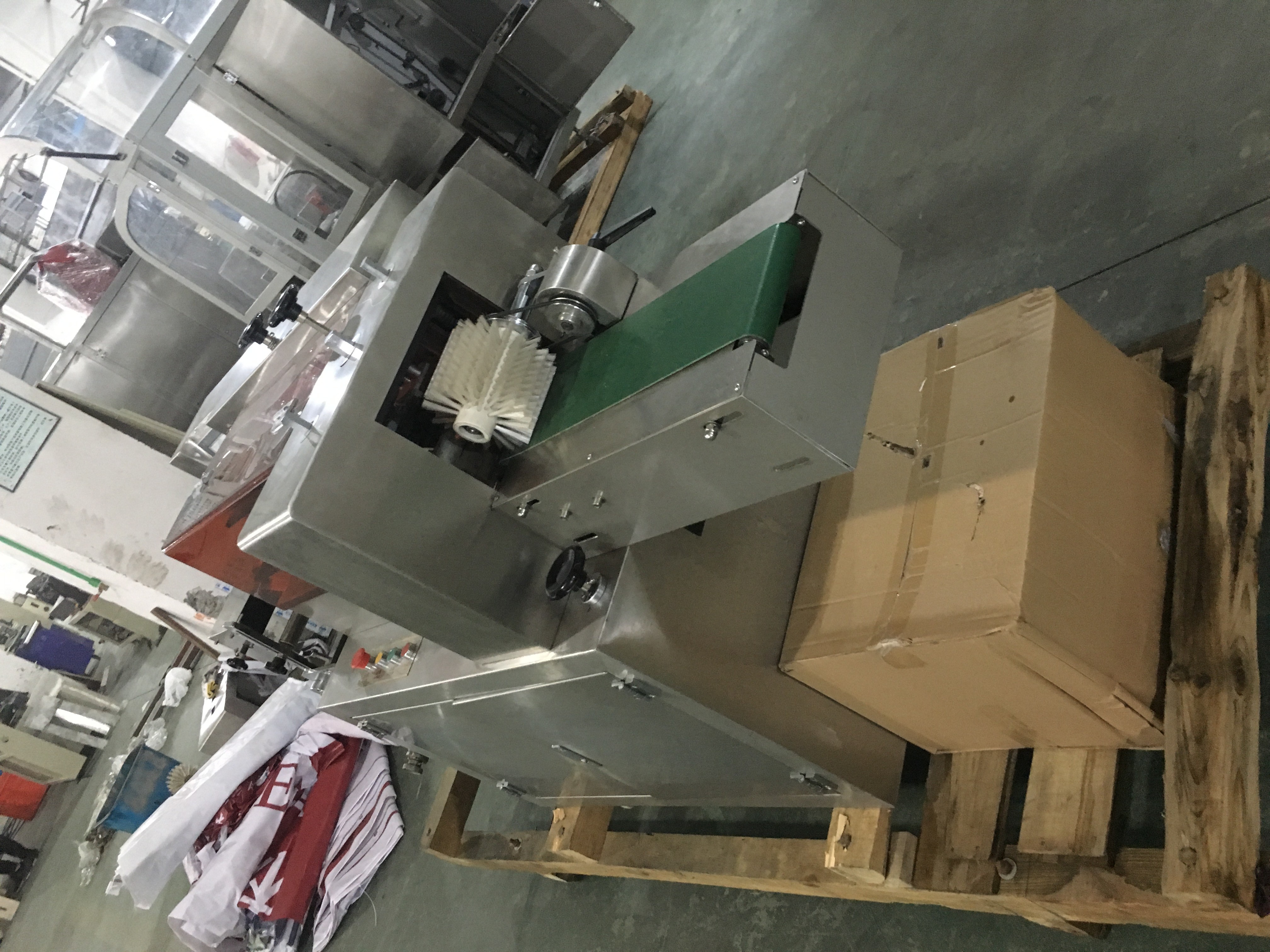

Stainless steel fuselage Horizontal Packing Machine can Effectively Reduce labor costs
Pricial capability and structural features:
1. Compact strure, stable function and simple operation,Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
2. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily. Self-checking function, troubles can be read easily.
3. Position stop function, noadhesive and no waste of membrane. Clean rotation system, more reliable operation and more convenient maintenance.All the controlling operates by the software, convenience for function adjustment and technical up grading.
4. High sensor photoelectric color charttracking, make the cutting position more correctly.Dependant temperature PID controlling suitable for various materials of packaging membrane.
5. The printer uses the ink wheel to code the code with three typesetting particles (including the production date, the validity period and the production batch number).
6. Test run of the machine & training:We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication and each day 100usd living allowances.
7. Training of buyer in China:We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer. We supply the consumable spare parts for free for one years use.
8. The control system is man-machine interface with manual and automatic operation mode, and it has the program of temperature, running time, number of edition and production quantity. It also configures detection, quantity setting function and independent switch function of upper and lower knife temperature and medium seal temperature. Configuring devices with storage and printing functions.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
