| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | horizontal pillow packing machine,pillow type packing machine |
||

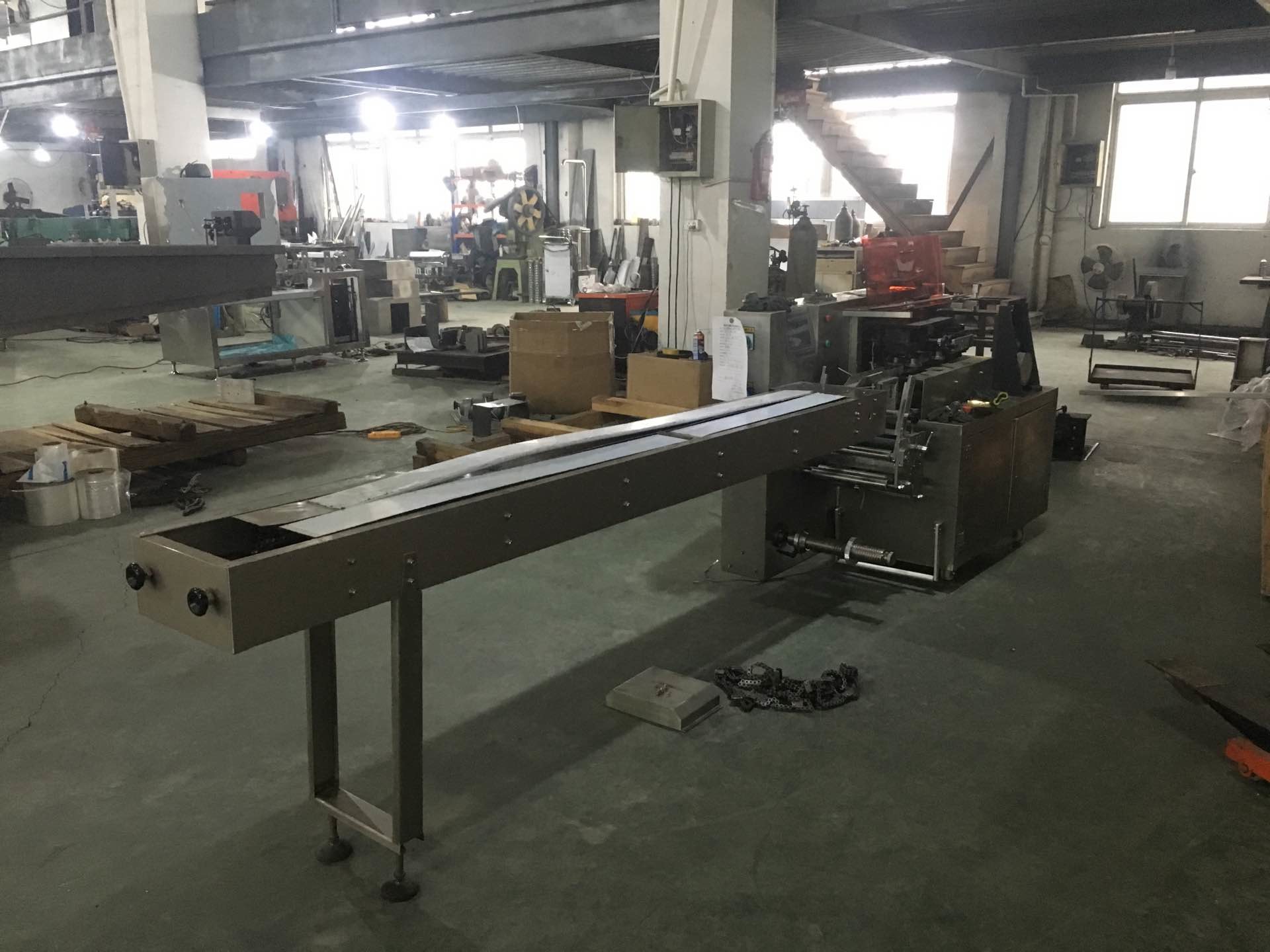

easy maintenance Horizontal Packing Machine has the advantages of convenient adjustment
Structure features
(1). Double transducer control, flexible bag length cutting,operator needn’t to adjust the empty walking, saving time and saving films.
(2). Touched man-machine interface, convenient and quick parameter setting.Self diagnosis failure function, clear failure display.
(3). All the controls are achieved by software.convenient for function adjusting and upgrading.
(4). Adopt PLD control to temperature suitable for various packing materials.
(5). High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing cutting more accurate.
(6). Stopping the machine in selected position, no sticking to the knife and no waste packing film.Simple driving system, reliable working, convenient maintenance.
(7). Application of pillow type packing machine in the food industry and the pharmaceutical packaging industry, greatly improving the health level of the packaging process, to achieve full closure, no chisel, clean packaging packaging process, packaging industry development is a milepost, also lifted people tedious work, make the efficiency of packing is greatly improved, for the packaging industry the rapid leapfrog development provides a new platform.
After-sale service:
1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.
2. Test run of the machine & training:
We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .
We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication and each day 100usd living allowances.
3. Training of buyer in China:
We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer
4. We supply the consumable spare parts for free for one years use.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
