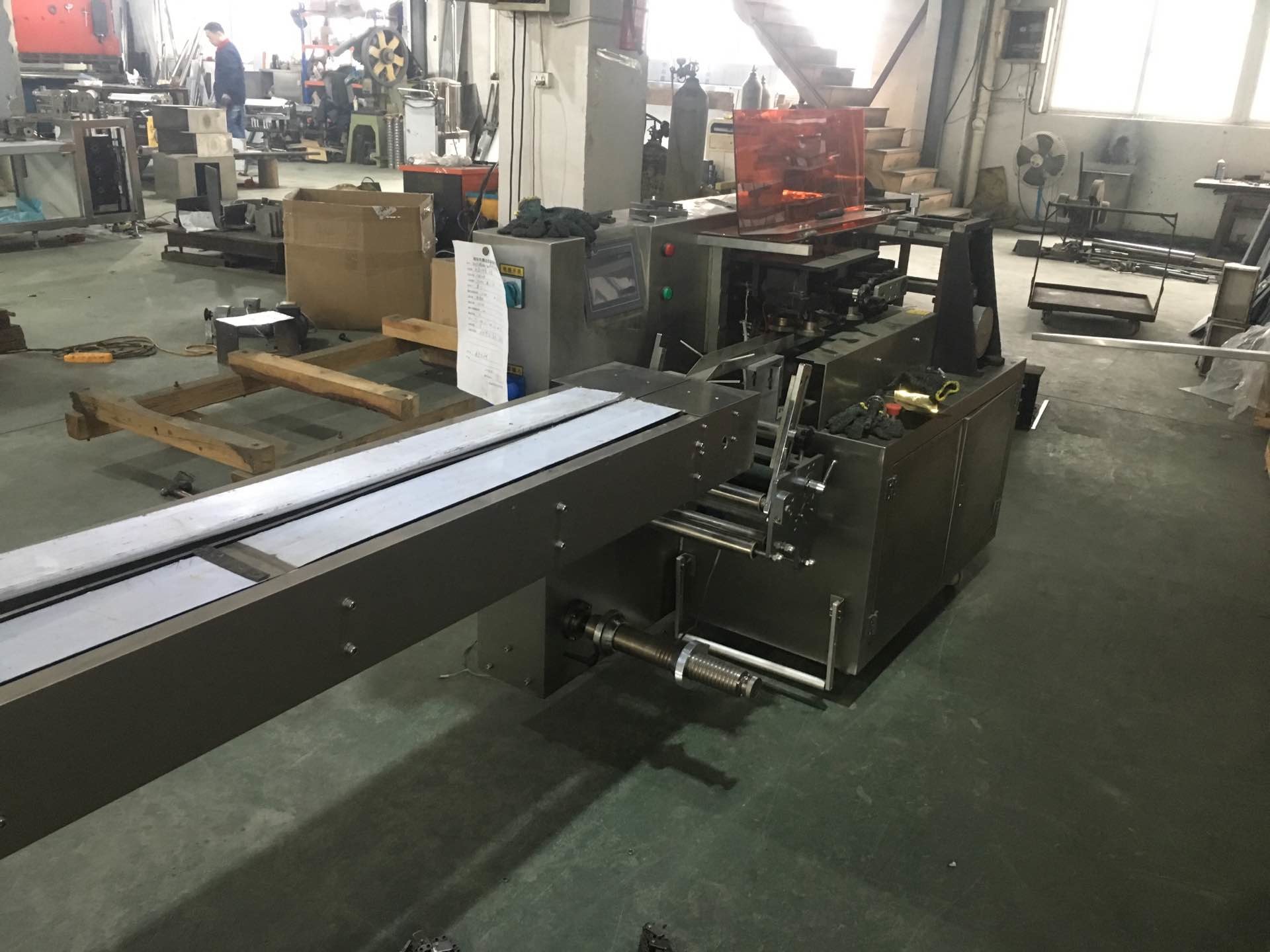

Efficient Horizontal Packing Machine Perfect Service System Double Transducer Control

Perfect service system Horizontal Packing Machine has One year repair for free and maintenance for lifetime

Structure features

(1). Double transducer control, flexible bag length cutting,operator needn’t to adjust the empty walking, saving time and saving films.

(2). Touched man-machine interface, convenient and quick parameter setting.Self diagnosis failure function, clear failure display.

(3). All the controls are achieved by software.convenient for function adjusting and upgrading.

(4). Adopt PLD control to temperature suitable for various packing materials.

(5). High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing cutting more accurate.

(6). Stopping the machine in selected position, no sticking to the knife and no waste packing film.Simple driving system, reliable working, convenient maintenance.

Maintain and Keep

1. Clean and maintain per shift

(1). Must shut down power supply before cleaning and wiping machine. In order to grarantee that persons and machine are safe.

(2). Wipe workbench and surface of the machine by wet duster.

(3). Use constingent air to swept products chipping in feeding dcvice and terminal sealing place away.

(4). Use steel brush which are wipe with lube swept film chipping on terminal sealing knife.

Inspection and maintain per month.

1. Giving oil to the gear & the heel zip in the sentem according to the principle of wiping. Don’t give oil to the sending stripe and step stripe.
2. Give oil to peeite sealing gear.
3. To checl whether the zip and stripe is tight or loosem in the sending part, regular when necessary.
4. To check whether the screw and nut is loosen or tight when necessary.
5. To check the electric brush, wipc it when necessary.

Maintain & Keep per half-year.

1. To check sending strip & conveying belt, change it when broken, please replace when necessary.
2. To check the easy-damaged mechanism, replace in time.
3. To check whether the conveying parts is bad, or replace it.
4. To check the electric tie-in, clean the dust by suing the compress air cleaner.

Description: as mentioned above,

1. packaging products before packaging materials into the packaging material,

2. package material has been molded by the shaper,

3. package material will immediately wrap the product with the product,

4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,

5. the product reaches the end seal and cuts off the seal.
