| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-450A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 70-1000/30-170/5-80mm | Packging Film Widh: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-450mm | Machine: | 220V |
| Height: | 5-80mm | Texture Of Material: | Stainless Steel |
| High Light: | cookie packaging machine,food product packaging machine |
||

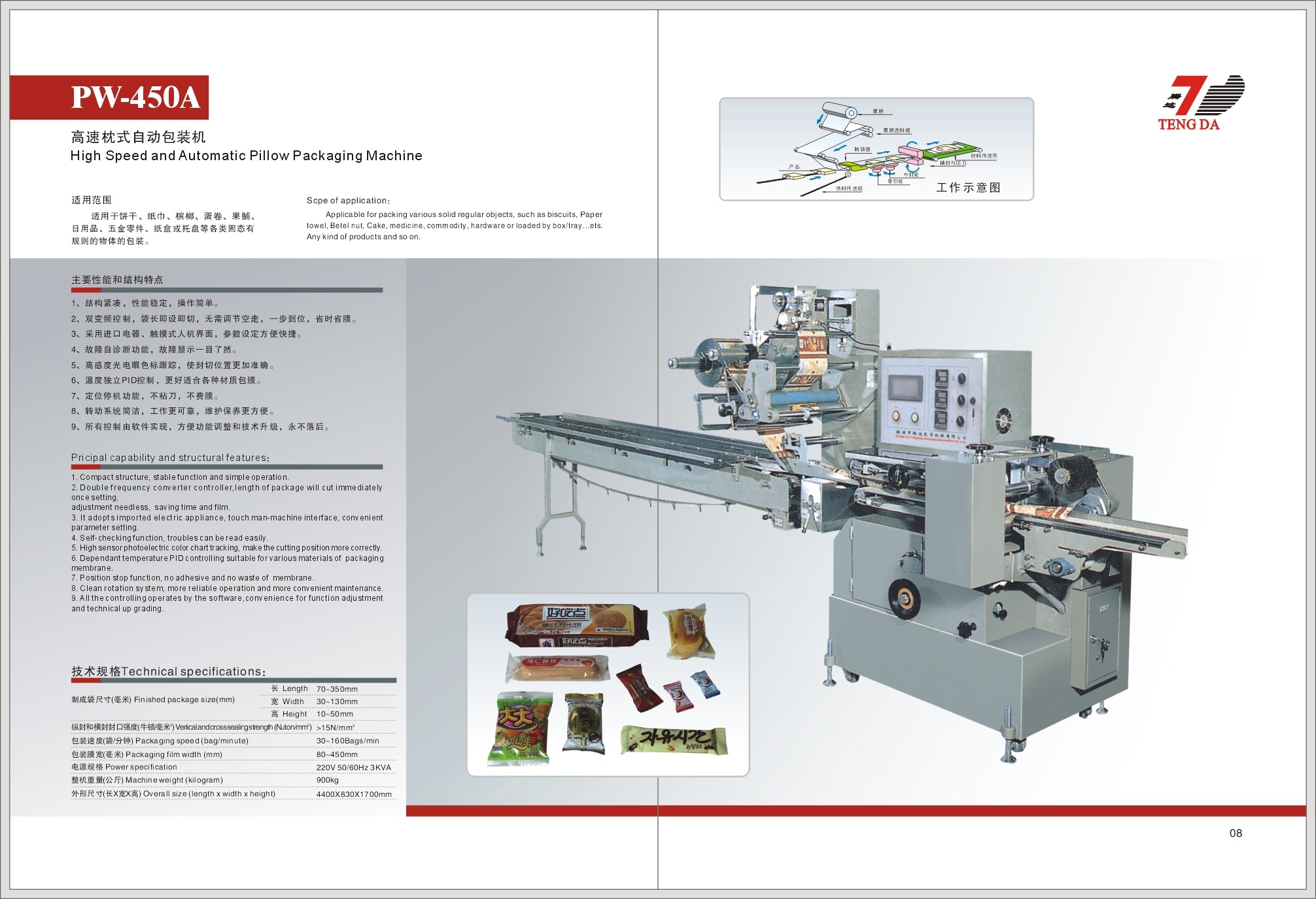

70 - 1000 mm Articles for daily use packing machine automatic Stainless steel
Pricial capability and structural features:
1. automatic positioning confirmation of packaging film, automatic alignment of cutting position, no adhesion.
2, use the easy tearing mouth design method.
3, the parameters such as production speed, production, temperature and bag length can be set, and it can run steadily in the range of parameters.
4, automatic detection device, can detect the lack of plate and multiple plates, appearance of defective products, and automatic waste treatment. ,
5, with accurate quantitative statistical function, the quantity of production can be set.
Lack of material stop to remind function, abnormal can automatically stop, and alarm.
The transmission system adopts synchronous belt and synchronous wheel transmission system, drive motor, reducer, inverter, bearings and drive shaft drive system should be able to meet the requirements of machine maximum load output, should adopt servo motor, transmission system design should be considered to facilitate the maintenance, maintenance and repair.
| Finished package size(mm) | Length | 70-1000mm |
| Width | 30-170mm | |
| Height | 5-80mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 900kg | |
| Overall size (length * width * height) | 4400×830×1700mm | |
