| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 220V/380V | Weight: | 800kg |
| Overall Size: | 3780×640×1560mm | ||
| High Light: | pastry packaging machine,flow wrap packaging machine |
||

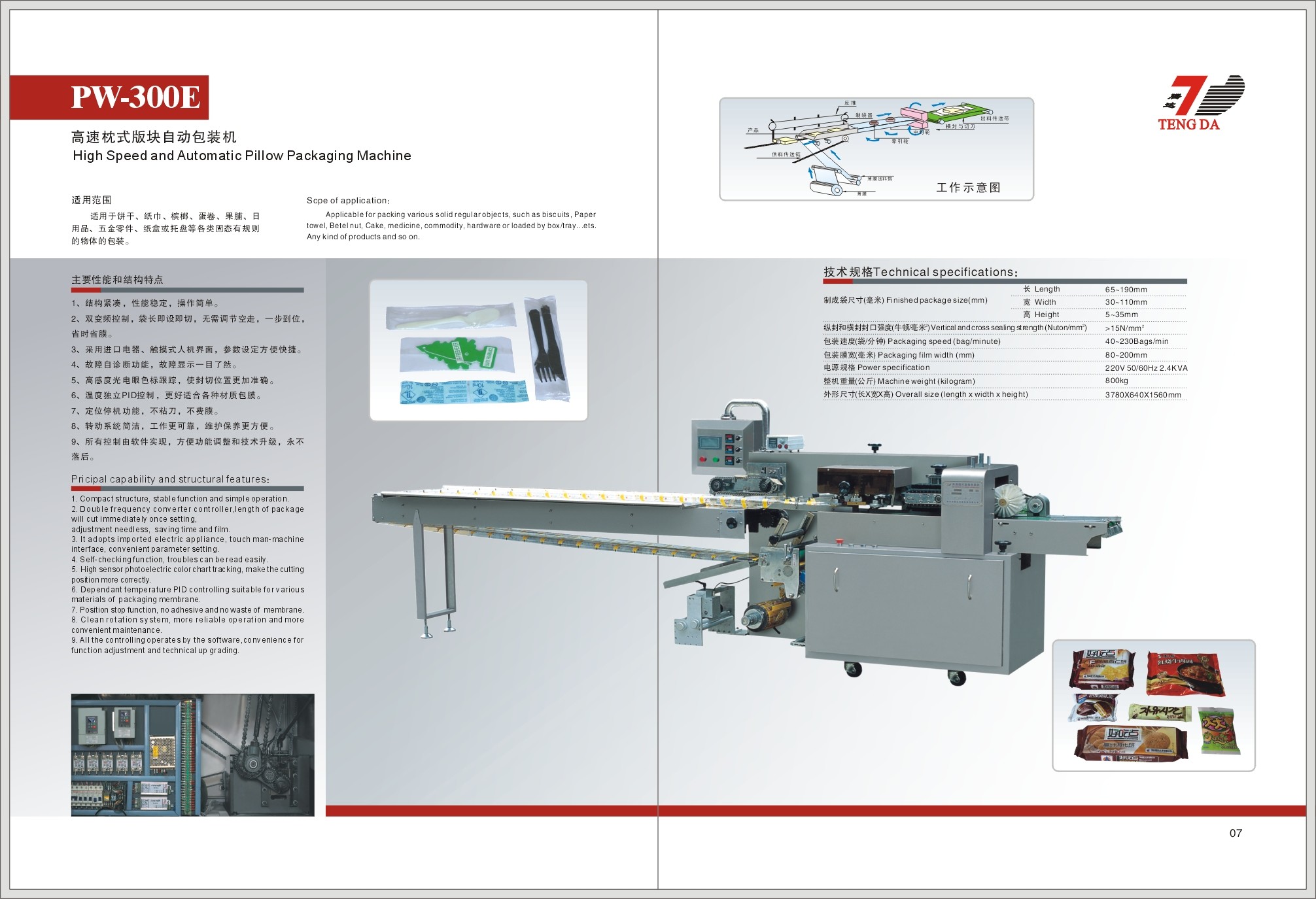

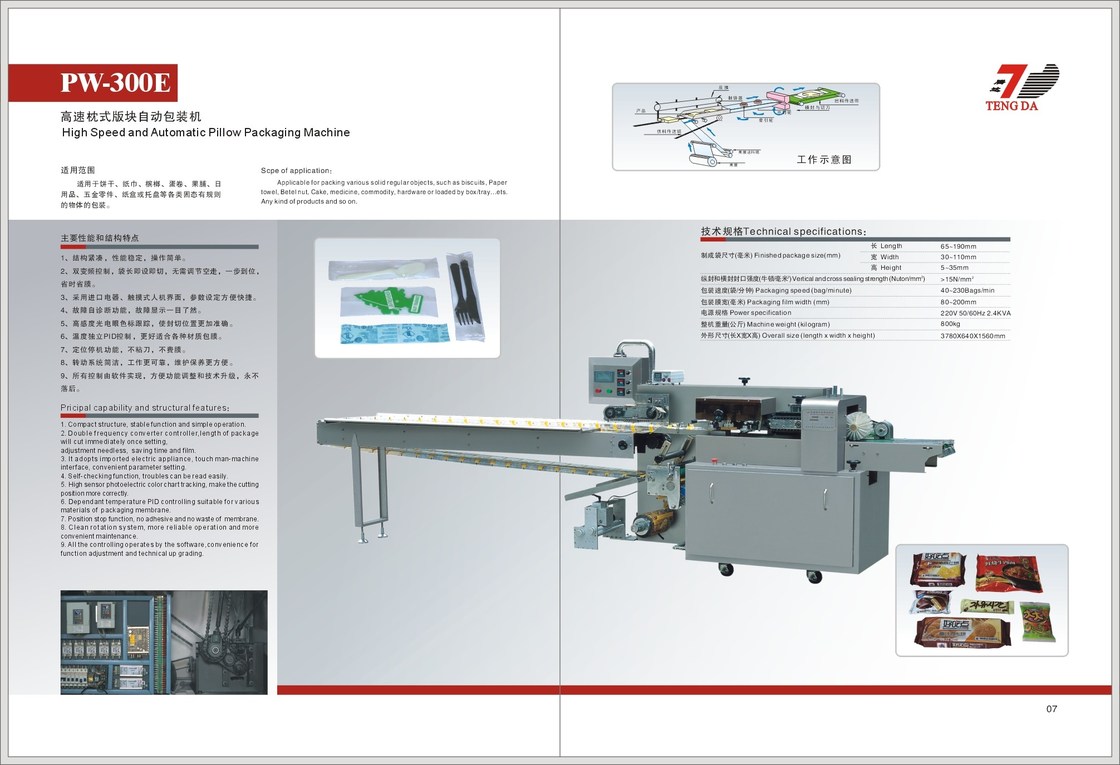

HIGH SPEED pillow automatic Width 30 - 110 mmStationery packing machine for Pens
Pricial capability and structural features:
1.Compact strure, stable function and simple operation
2.Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
3.It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
4. The structure design of equipment use, operation and maintenance must conform to the principle of ergonomics, and the design and manufacture meet the safety design specification of the related equipment.
5. The heating parts have the function of exceeding the limit alarm. The electronic connection is reliably equipped with overload, short circuit, overheating and leakage protection.
6. To meet the requirements of packaging, transportation and handling, moisture proof, anti collision, anti vibration, because any rust damage caused by improper packing, the seller bear all losses and expenses.
7. This machine dismantling maintenance tool contains a set of toolbox, and the material of the toolbox is in accordance with the requirements of the clean area.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
