| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Machine Model: | PW-300A | Delivery: | Twenty Days |
|---|---|---|---|
| Encasement: | Wooden Case | Color: | Milky White/silver |
| Power Specification: | 220V 50/60HZ 2.4kw | COUNTRY OF ORIGIN: | MADE IN CHINA |
| High Light: | horizontal wrapping machine,horizontal pillow packing machine |
||

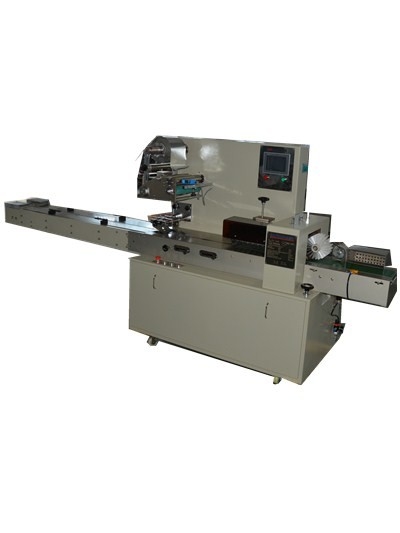

The PW - 300 A high speed and horizontal pillow packaging machine applicable for packing baby diaper
Equipment capability:
1. The machine is designed for solid object pillow package Suitable for paching all kinds of regular solid objects, such as biscuits, bread,moon cake, soft sweets....,and foodstuff industry,pharmacy,daily commodity,cold ware.
2. For bulk objects or individual separated objects must be putted in box or make them wholes, then they could be pached in the machine. AS to non-solid objects.
3. They should also follow this fundamental.
4. he cutting and back sealing of the cutter seat: the seal is smooth and the indentation of the knife seat is clear.
5. Waste device: the material can be detected in the production, and the waste can be removed.
6. Provide equipment requirements for power system and plant facilities in detail, and assist users to complete the design of installation drawings.
7. Packing speed 40~100 bag / min adjustable, adjustable length 65~190mm, the maximum height of less than 45mm.
8. The temperature can be controlled by the temperature module and the temperature fluctuation is within + 3 C.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |

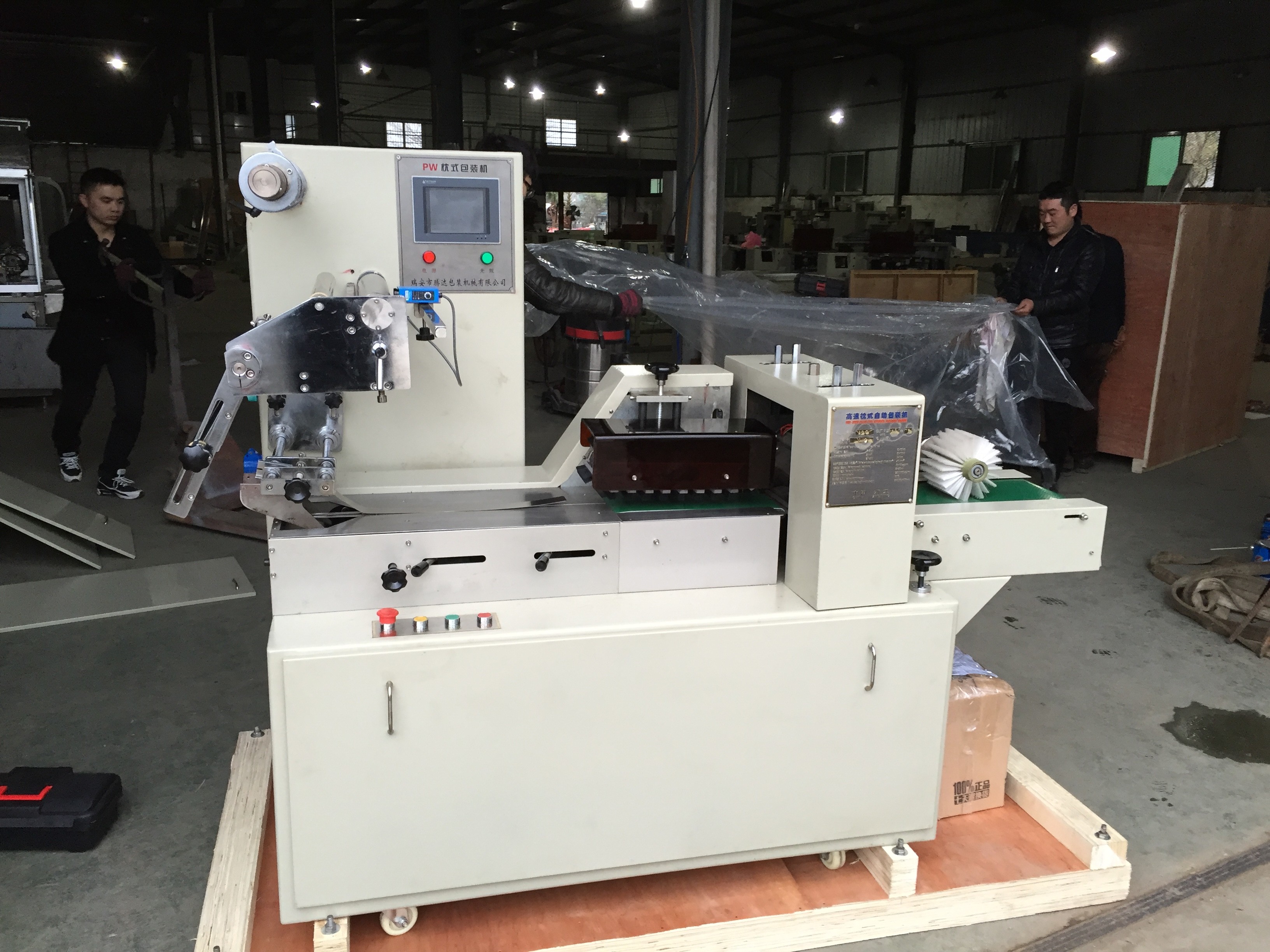

the picture of exhibition:
