Packaging Speed: | 5-230Bags/min | Weight: | 500kg |
---|---|---|---|
Overall Size: | 3780-830-1700mm | Color: | Milky White |
Packing Material: | Composite Membrane | ||
High Light: | bakery packaging machine,food product packaging machine |

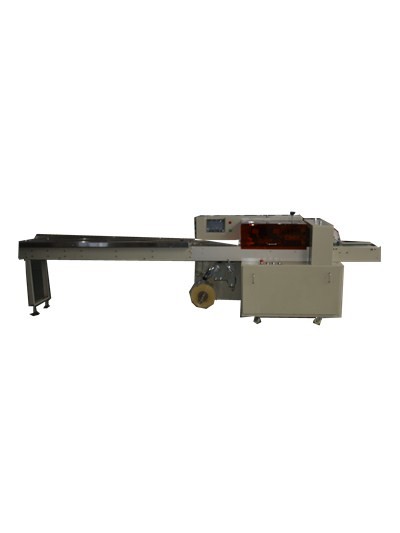

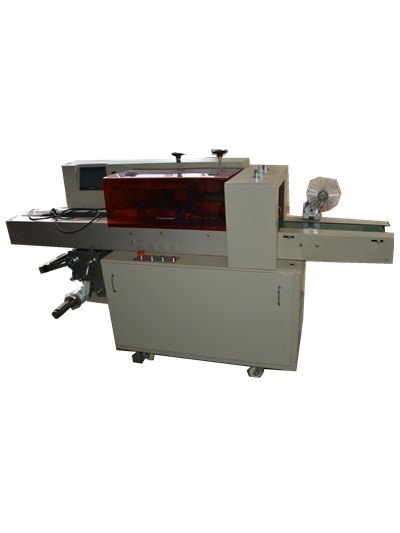

Automatic food packing PW - 300 E stainless steel no air bag function
Applicable to the daily necessities industry
The main performance and structure features:
1. Bring their own air defense function and save material.Three precision servo control, bag length is set is cut, don't need to adjust empty, one pace reach the designated position, time-saving province membrane.
2. Servo blanking operation, convenient and fast, just in the screen operation. High sensor photoelectric color charttracking, make the cutting position more correctly.
3. fault self-diagnosis function, fault shows at a glance.positioning stop function, non-stick knives, at no cost.the rotation system is simple, more reliable, more convenient maintenance.
4. The control system is man-machine interface with manual and automatic operation mode, and it has the program of temperature, running time, number of edition and production quantity. It also configures detection, quantity setting function and independent switch function of upper and lower knife temperature and medium seal temperature. Configuring devices with storage and printing functions.
5. The hopper and the metal part of the feeder are made of 304 stainless steel. The non metal must meet the GMP requirements and provide an effective material specification. The material selected not to contact with the material must be ensured not to fall off, corrosion resistant, easy to clean, and no pollution to the environment.
scope of application:
Applicable to irregular non-standard shaped objects Applicable to the daily necessities industry
Technical parameter:
Finished package size (mm) |
Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | >15N/m㎡ | |
Packaging speed bag/minute | 5-230Bags/min | |
Packaging film width(mm) | 80-300mm | |
Power specification | 220V50/60Hz2.4KVA | |
Machine weight (kilogram) | 400kg | |
Overall size (lengthXwidthXheight) | 3780×640×1560mm |
