Weight: | 450kg | Color: | Silver |
---|---|---|---|
Packing Material: | Composite Membrane | Encasement: | Wooden Case |
Material: | Stainless Steel | ||
High Light: | bakery packaging machine,cookie packaging machine |

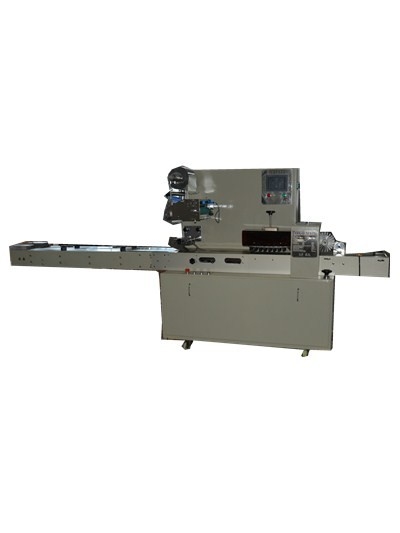

Automatic Stainless steel flow packing machine applicable for Cakes and Pastries
The main performance and structure features:
1. Fault self-diagnosis function, fault shows at a glance.positioning stop function, non-stick knives, at no cost.
2. Transmission area sealing device: ensure the sealing effect between the transmission area and the studio and clean room, to ensure that the studio has no obvious dust pollution driving area, oil transmission area does not pollute the clean room where the studio, which is to avoid the transmission area and area of cross infection.
3. with high-end appliances, touch human-machine interface, convenient
parameter setting.
4. The key components such as PLC and touch screen are well-known international brands, and the main motor and feeding motor are famous brands in China.
5. When the equipment is running, the noise is less than 80dB.
scope of application:
Applicable to regular shaped objects Special packing for food like Cakes and Pastries.
.
Technical parameter:
Finished package size (mm) |
Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | >15N/m㎡ | |
Packaging speed bag/minute | 5-230Bags/min | |
Packaging film width(mm) | 80-300mm | |
Power specification | 220V50/60Hz2.4KVA | |
Machine weight (kilogram) | 400kg | |
Overall size (lengthXwidthXheight) | 3780×640×1560mm |
