Packging Film Widh: | 5-230Bags/min | Overall Size: | 3780×640×1550mm |
---|---|---|---|
Material: | Stainless Steel | Sealing Strength: | >15 N/mm² |
Machine Model: | PW-300A | Delivery: | Twenty Days |
High Light: | horizontal pillow packing machine,pillow type packing machine |

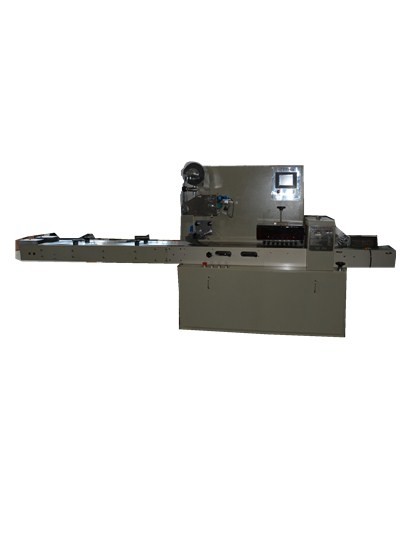

Horizontal 304 Stainless steel pillow packing machine speed 5 - 230 bags / min for small food like Lollipop
Pricial capability and structural features:
1. Compact strure, stable function and simple operation,All the controlling operates by the software, convenience for function adjustment and technical up grading.
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film;It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
3. The heating parts have the function of exceeding the limit alarm. The electronic connection is reliably equipped with overload, short circuit, overheating and leakage protection.
4. Dependant temperature PID controlling suitable for various materials of packaging membrane.
5. Position stop function, noadhesive and no waste of membrane.
6. Clean rotation system, more reliable operation and more convenient maintenance.
7. The structure design of equipment use, operation and maintenance must conform to the principle of ergonomics, and the design and manufacture meet the safety design specification of the related equipment.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
