Packaging Speed: | 5-230Bags/min | Power Specification: | 220V |
---|---|---|---|
Weight: | 500kg | Overall Size: | 3780-830-1700mm |
Color: | Milky White | ||
High Light: | cookie packaging machine,food product packaging machine |

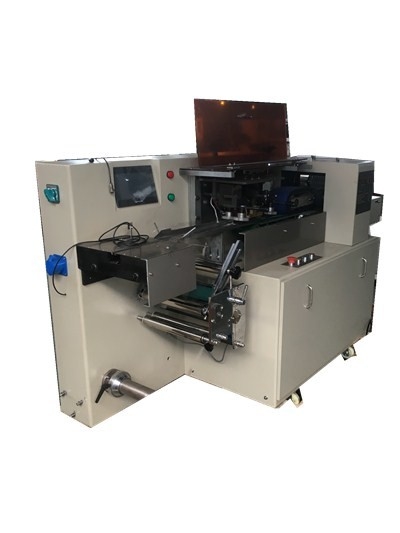

Automatic food packing stainless steel packing size long 30 - 500 mm
special packaging machine for Red dates
The main performance and structure features:
1. Bring their own air defense function and save material.Three precision servo control, bag length is set is cut, don't need to adjust empty, one pace reach the designated position, time-saving province membrane.
2. Servo blanking operation, convenient and fast, just in the screen operation.
3. with high-end appliances, touch human-machine interface, convenient
parameter setting.
4. fault self-diagnosis function, fault shows at a glance.positioning stop function, non-stick knives, at no cost.the rotation system is simple, more reliable, more convenient maintenance.
5. glances standard high Sensibility degrees photoelectric tracking, more accurate in the position of sealing and cutting.
6. The hopper and the metal part of the feeder are made of 304 stainless steel. The non metal must meet the GMP requirements and provide an effective material specification. The material selected not to contact with the material must be ensured not to fall off, corrosion resistant, easy to clean, and no pollution to the environment.
scope of application:
Applicable to irregular non-standard shaped objects packaging In various industries.
Technical parameter:
Finished package size (mm) |
Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | >15N/m㎡ | |
Packaging speed bag/minute | 5-230Bags/min | |
Packaging film width(mm) | 80-300mm | |
Power specification | 220V50/60Hz2.4KVA | |
Machine weight (kilogram) | 400kg | |
Overall size (lengthXwidthXheight) | 3780×640×1560mm |
