| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | G PW-350C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000 / set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Film Diameter: | Max.400mm |
| Machine Weight: | About 1160Kg | Machine Size: | (L)4200×(W)960×(H)1520mm |
| High Light: | capsule blister packaging machine,tablet blister packaging machine |
||

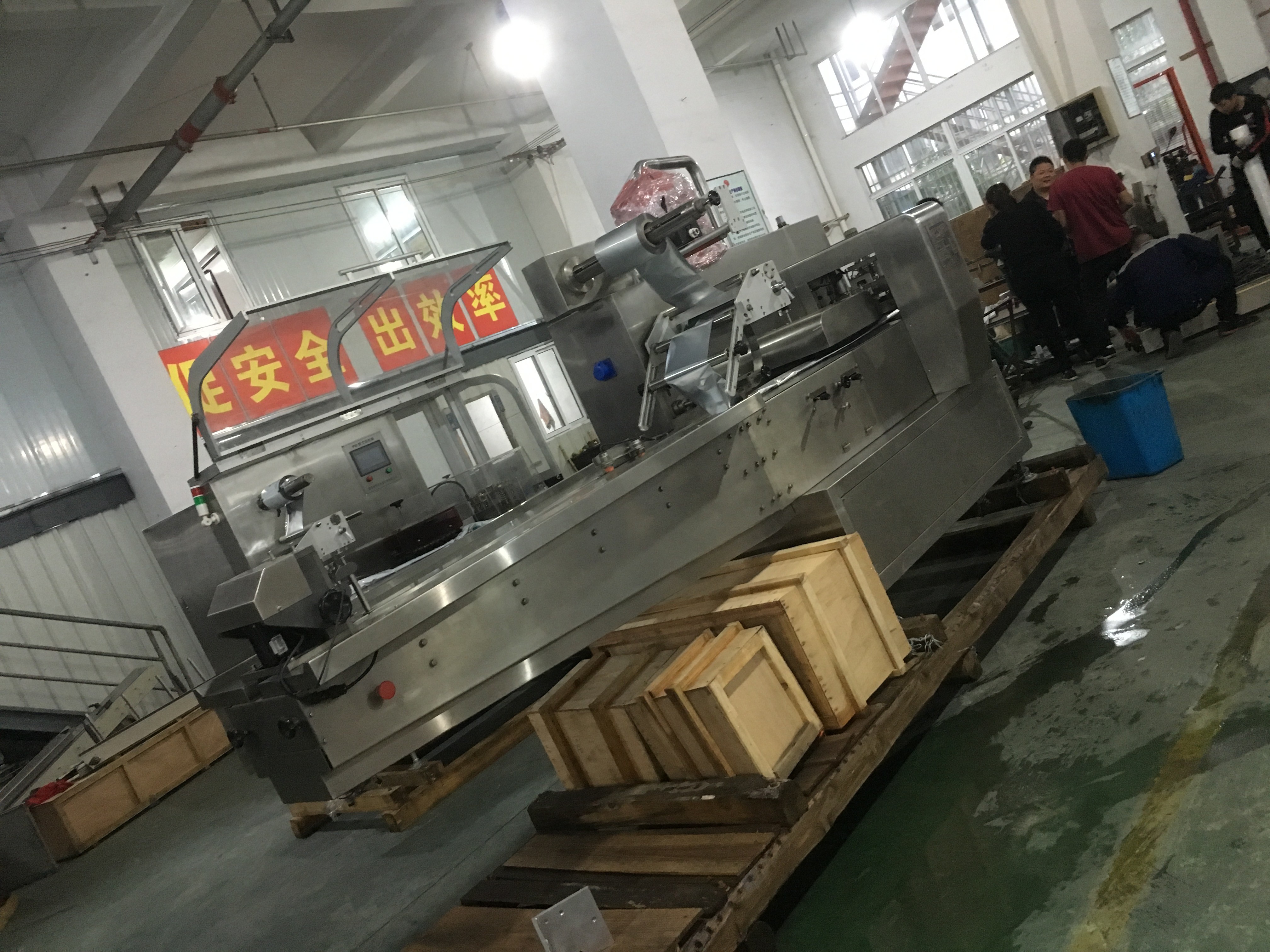

high speed Reciprocating pillow type packing machine silver special for blister like Gynecological gel
Automatic packaging machine with automatic measurement, filling, bagging, sealing, cutting off, conveying, printing production batch number, increase the easy incision, no material warning, mixing and other functions.
feature:
1 fully automatic feeding, metering, filling bag, print the date, the product output all the production process.
2 high precision, high efficiency, no scrap.
Food packaging machine
Food packaging machine
3 provincial labor, low loss, easy operation and maintenance.
4 food packaging machine uses a stepper motor, quiet operation, stable operation, long life.
5. According to the characteristics of the measured objects, fine-tune the hopper door opening and closing speed, to prevent broken and card chat.
6. Calculation error: ± 1.5g within

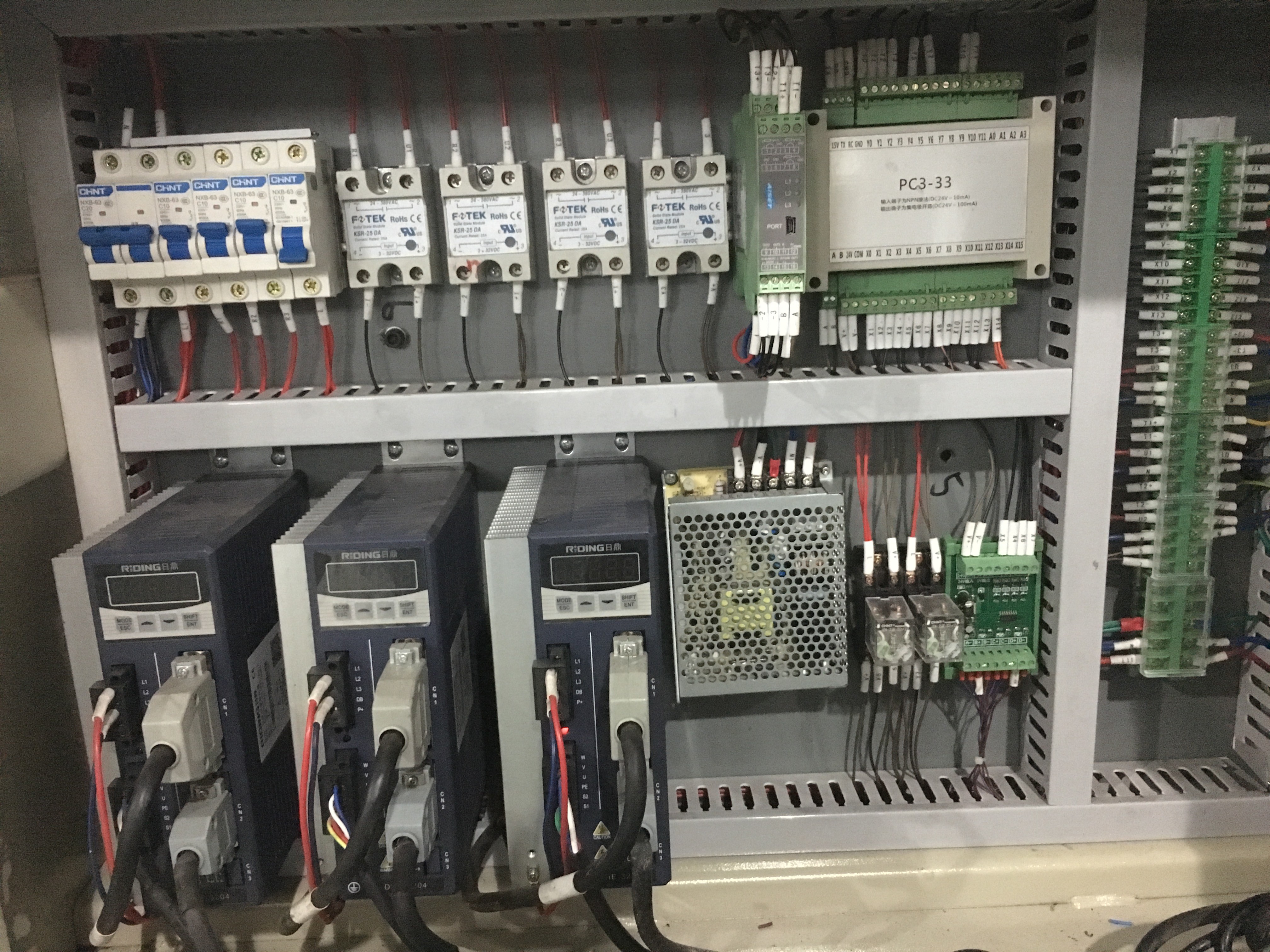

Configuration list
| name | Model and specification | manufacturer | quantity |
| Appearance body | All stainless steel body 304 # | The machine shell | |
| Transmission of the tail | Fujian aluminium profile | The whole machine delivery | |
| Switching power supply | S—35—24 | Taiwan MeanWell | 1 |
| emergency stop switch | XB2—BS542C | Schneider | 1 |
| Red green indicator | AD16-220S | Shanghai anapt | 2 |
| ellow and red green button | XB2-A-1C-2C-0C | Schneider | 3 |
| Solid state relay | SSR series MGR-104825 | MEGIR | 3 |
| Photoelectric switch | CX—424 | Japan panasonic | 3 |
| Air switch | DZ-47-60/C15 | China chint | 3 |
| DZ-47-60/C25 | China chint | 1 | |
| Feeding servo motor | 0.4KW | Japan panasonic | 1 |
| encoder | B-ZSP4006GC 5-24VDC | Wuxi Ruipu | 2 |
| Medium sealed electromagnet | MPB1-2.5YC/220VD | Wenzhou xinhao industrial control | 1 |
| Conveyor belt | 460*120*2 | Xiamen Olide | 2 |
| Code printer | MS-200I | WhenZhou Shenglong | 1 |
| Electric coupling | K type | Shanghai Yatai | 3 |
| Main switch | 20A-4KW | Changjiang electric | 1 |
| White relay | JQX-13F(D) | China chint | 3 |
| feed servo driver | MBDJT2210/220VDC | Japan panasonic | 1 |
| Proximity switch | SC3015-NL | ROKO | 1 |
| SC3015-N | ROKO | 1 | |
| Total power outlet | TYPE/ST-313 | SET | 1 |
| Synchronous belt | 5M670 B25 | Japan panasonic | 1 |
| Touch screen | PW-5610-SB | HITECH | 1 |
| Motion controller | ASD-M-0721-R | Delta | 1 |
| Servo motor | ECMA-C10807RS(750W) | Delta | 2 |
| Servo motor | ECMA-C106047RS | Delta | 1 |
| Servo driver | ASD-A2-0421-F | Delta | 1 |
| Programmable module | ASD-DMC-RM32PT | Delta | 1 |
| Temperature module | DTE-1000 | Delta | 1 |
