| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300C |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | capsule blister packaging machine,tablet blister packaging machine |
||

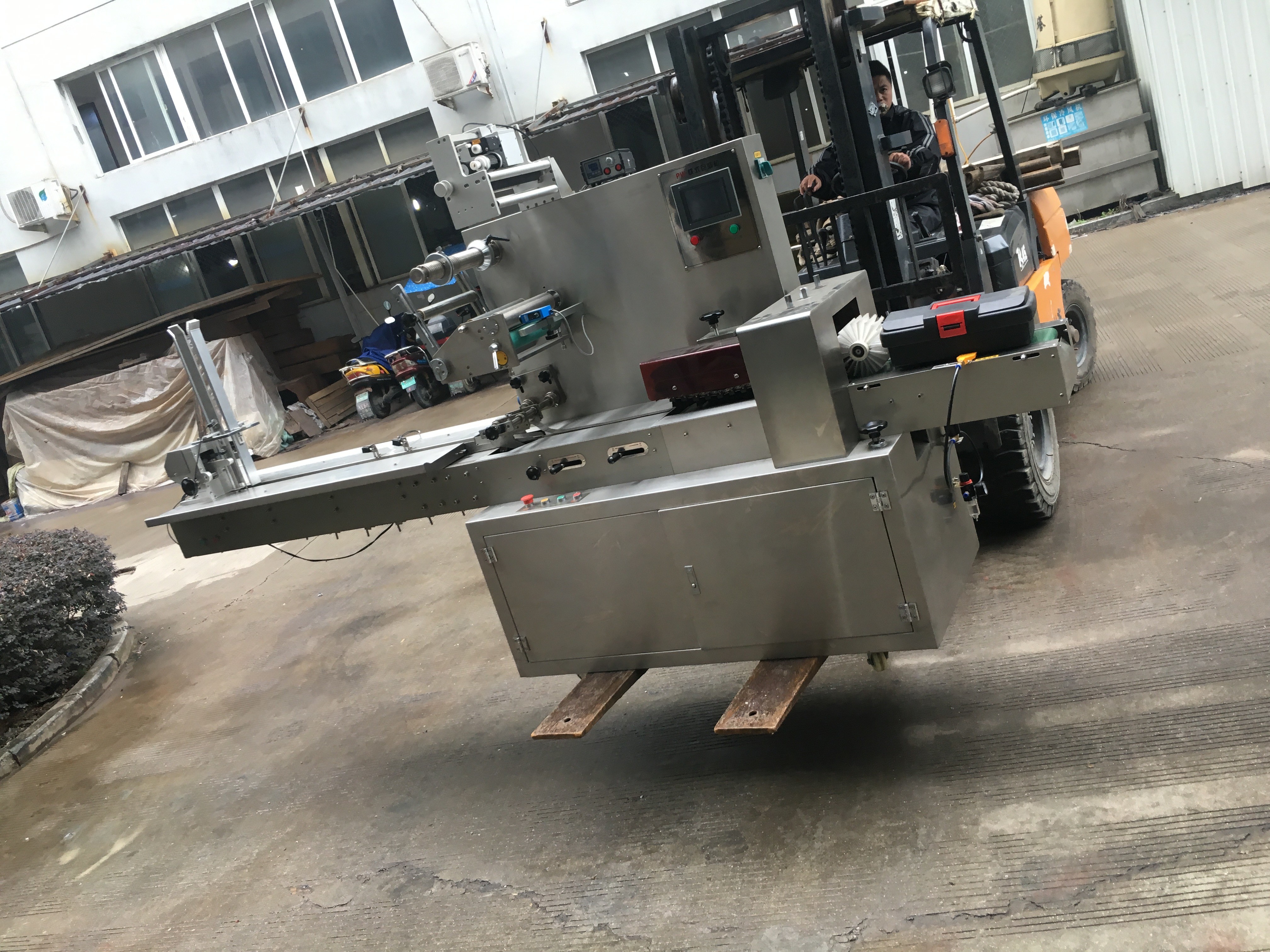

stainless steel silver Blister Packing Machine pillow type no air bag function
Pricial capability and structural features:
1. Frequency control with fast dynamic follow-up performance and high speed accuracy, automatically correct the frequency, in order to achieve the load changes when the motor speed stability. The length of the bag that is set to cut, no need to adjust the empty walk. When a fault occurs, the device alarms and the display shows the corresponding message and the device stops operating.
2. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily. Self-checking function, troubles can be read easily.
3. High sensor photoelectric color charttracking, make the cutting position more correctly.Dependant temperature PID controlling suitable for various materials of packaging membrane.
4. Non-processed surface paint or spray layer should be smooth, uniform color, no obvious pollution, flow marks, blisters, repair marks and other defects. Surface treatment of parts should be uniform color, no blistering, from the floor, spots, rust and other defects.
5. With fault alarm and shutdown function, there is an emergency shutdown switch, you can turn off all electrical and pneumatic control switch. A little move switch. The entire line of a control cabinet.
6. Controller according to the cutter signal measurement of the current production quantity, can be cleared.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
After-sale service:
1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.
2. Test run of the machine & training:
We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .
We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication and each day 100usd living allowances.
3. Training of buyer in China:
We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer
4. We supply the consumable spare parts for free for one years use.
