| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300C |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |

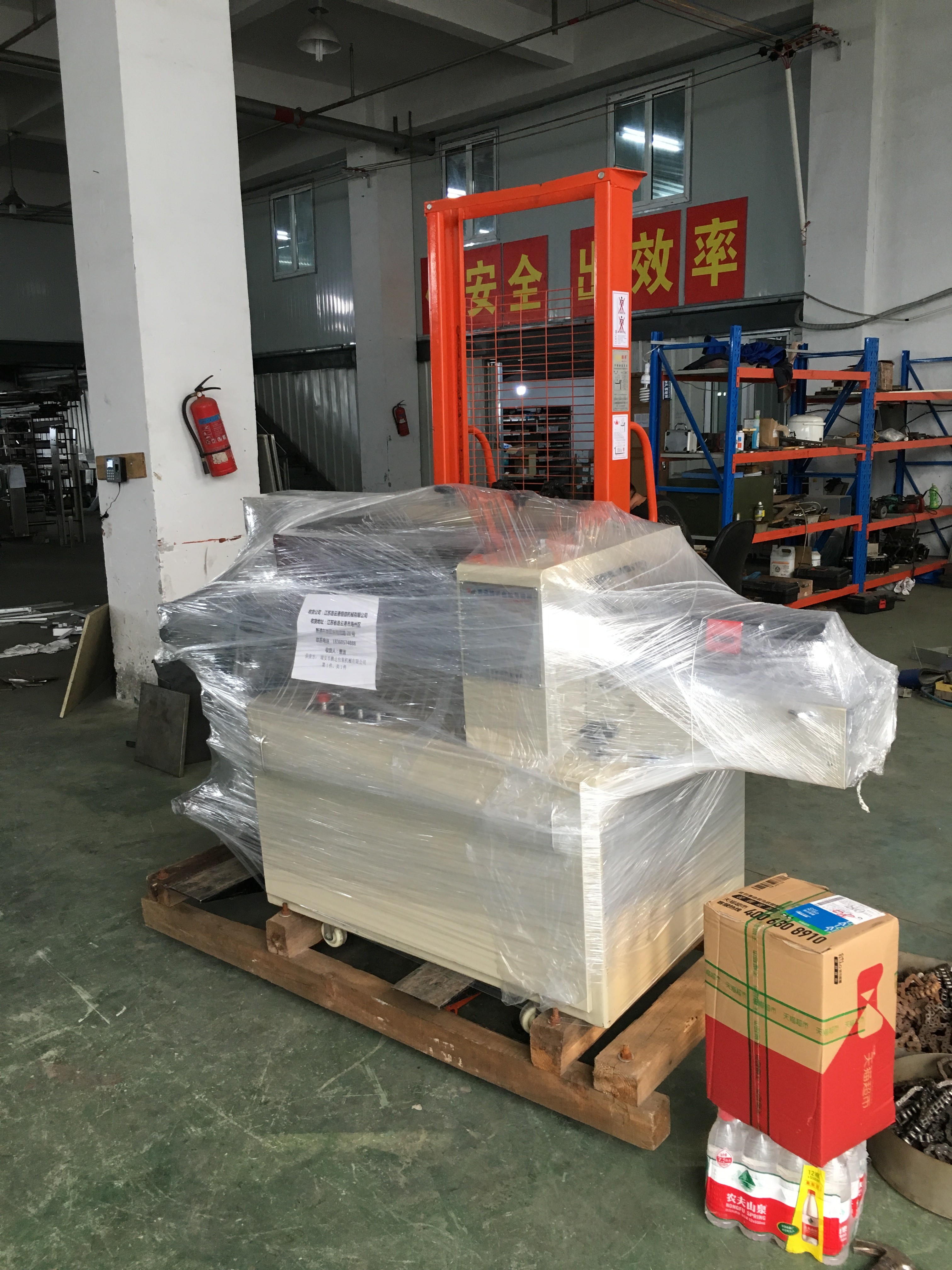

| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | pharmacy blister packaging machine,tablet blister packaging machine |
||

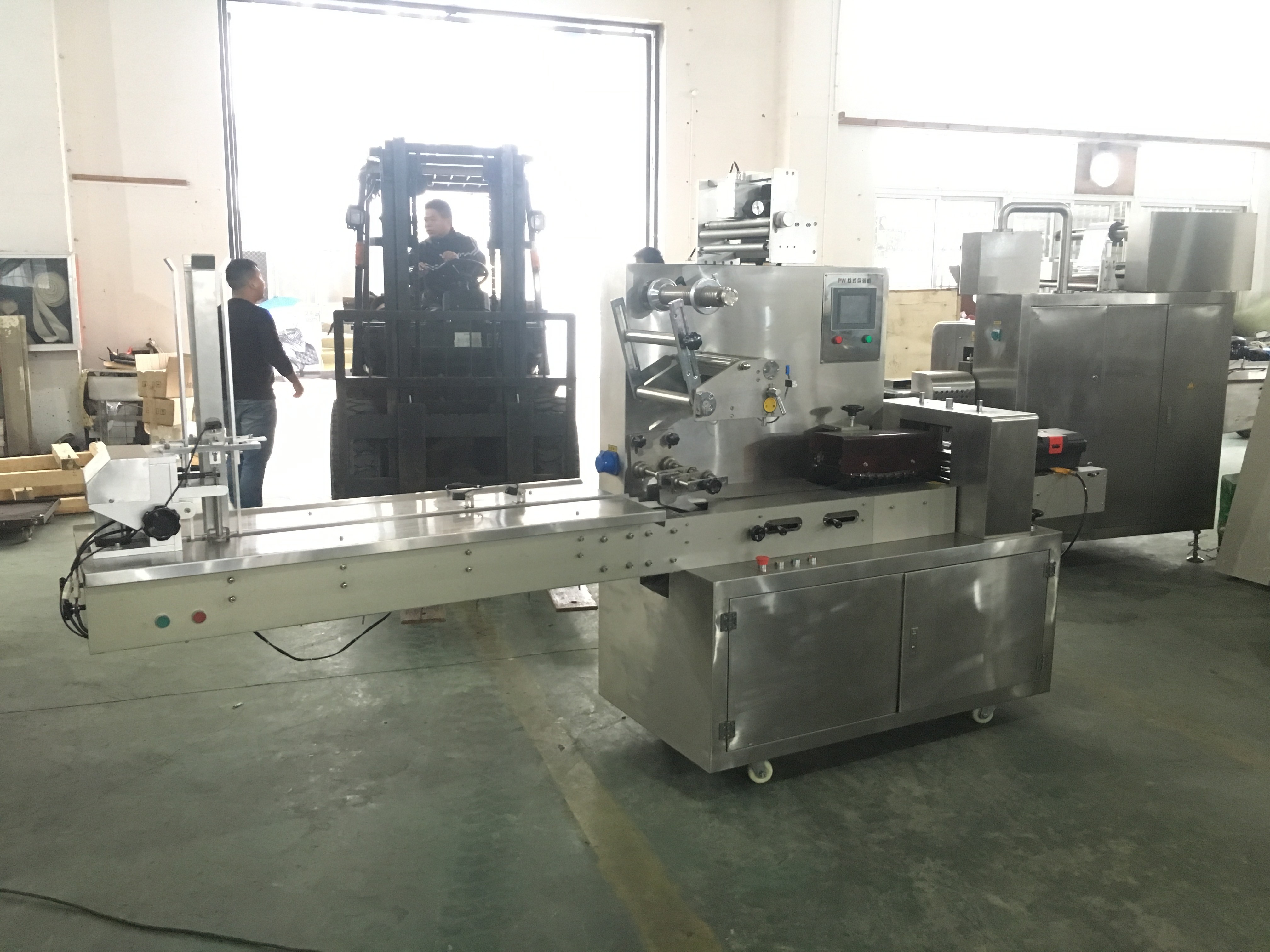

stainless steel pillow type silver Blister Packing Machine with no air bag function
Pricial capability and structural features:
1. Tracking mode, the control system automatically measures the actual bag length, according to the measured bag length for speed adjustment, and display
2. pillow type silver Blister Packing Machine adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily. Self-checking function, troubles can be read easily.
3. can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
4. No downtime to modify parameters in real time (set bag length, packaging speed, sealing temperature, etc.), adjust the location. After the machine downtime to save the current operating parameters, the next boot directly run according to the current parameters.
5. Can be set to store ten sets of recipe, parameter setting convenient.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Warranty:
1. We warranty against any defects in design and workmanship for 1 year from the shipment date.
2. This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3. We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
