| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300C |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | capsule blister packaging machine,tablet blister packaging machine |
||

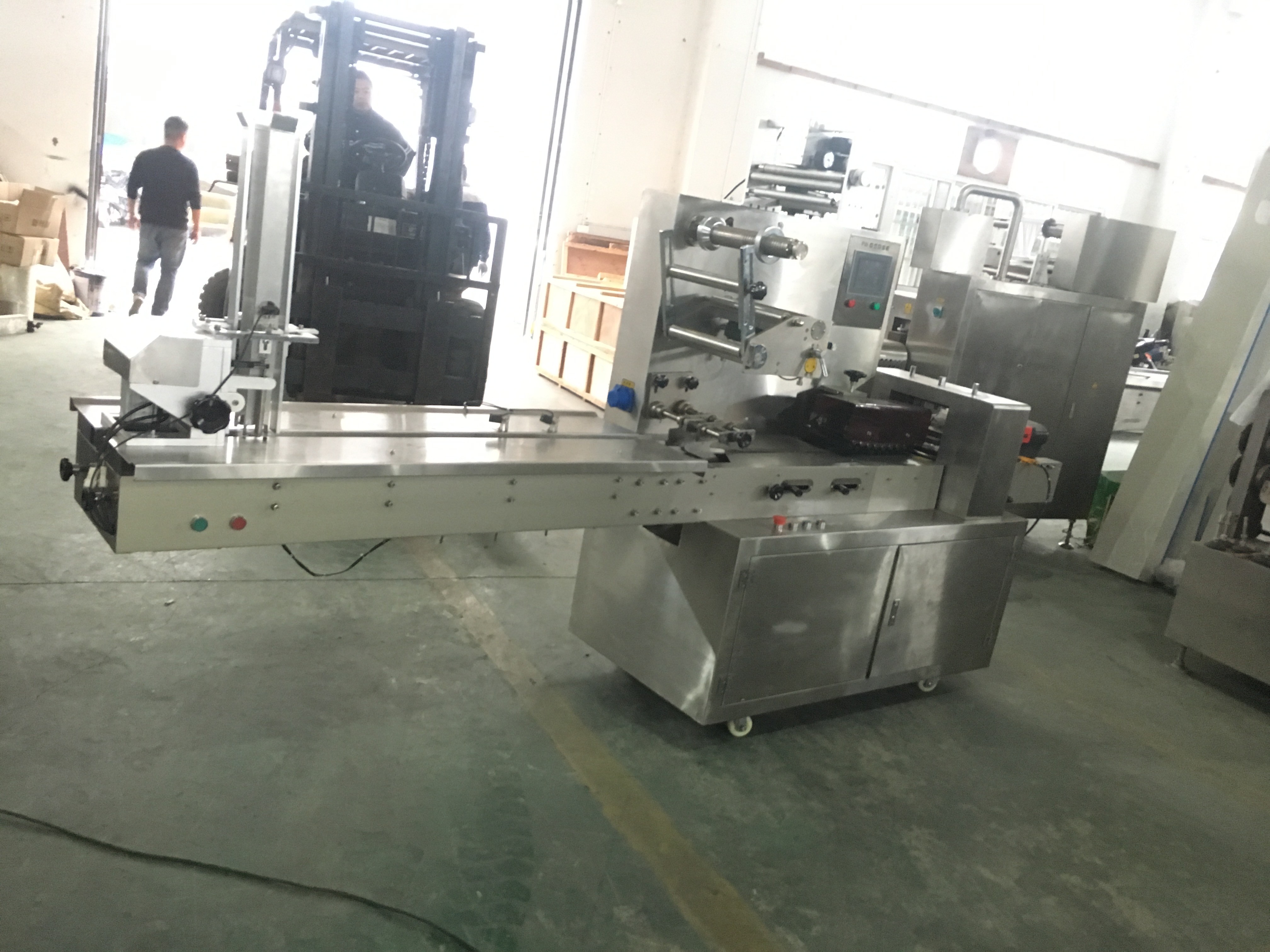

One year repair for free maintenance for lifetime Blister Packing Machine with Stainless steel fuselage
Horizontal packing machine A kind of packing machine, suitable for the packaging of various regular objects such as biscuit, rice pass, snow cake, yolk pie, chocolate, bread, instant noodles, mooncake, medicine, daily necessities, industrial parts, paper box or tray.
Pillow packaging machine is a packaging capacity is very strong, and can be used for a variety of specifications for food and non-food packaging, continuous packaging machine. It can be used not only for packaging of non-trademarked packaging materials but also for high-speed packaging using web materials preprinted with a logo. In the packaging production, due to the error of the positioning color code printed on the packaging material, the stretching of the packaging material and the influence of the mechanical transmission and so on, the predetermined sealing and cutting position on the packaging material may deviate from the correct position, resulting in errors. In order to eliminate the error and achieve the purpose of correct sealing, packaging design must consider the automatic positioning problem, to solve this problem are mostly based on the positioning of packaging materials to complete a continuous photoelectric automatic positioning system design. The continuous photoelectric positioning system according to the error compensation work is divided into retractable, brake and two transmission system synchronous.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
feature:
1. Dual inverter control bag length that is set that is cut, no need to adjust the air to go, one step in place, save time and film.
2. Man-machine interface, the parameters set top convenient.
3. Fault self-diagnosis function, fault display at a glance.
4. High sensitivity photoelectric eye color tracking, digital input sealing position, so that the sealing position more accurate.
5. Temperature independent PID control, good for a variety of packaging materials.
6. Stop positioning function, do not stick knife, do not waste the envelope.
7. Transmission system is simple, more reliable, more convenient maintenance.
8. All the control by the software to facilitate functional adjustment and technology upgrades, never backward.
